SKU: 6204-2RS-CDX

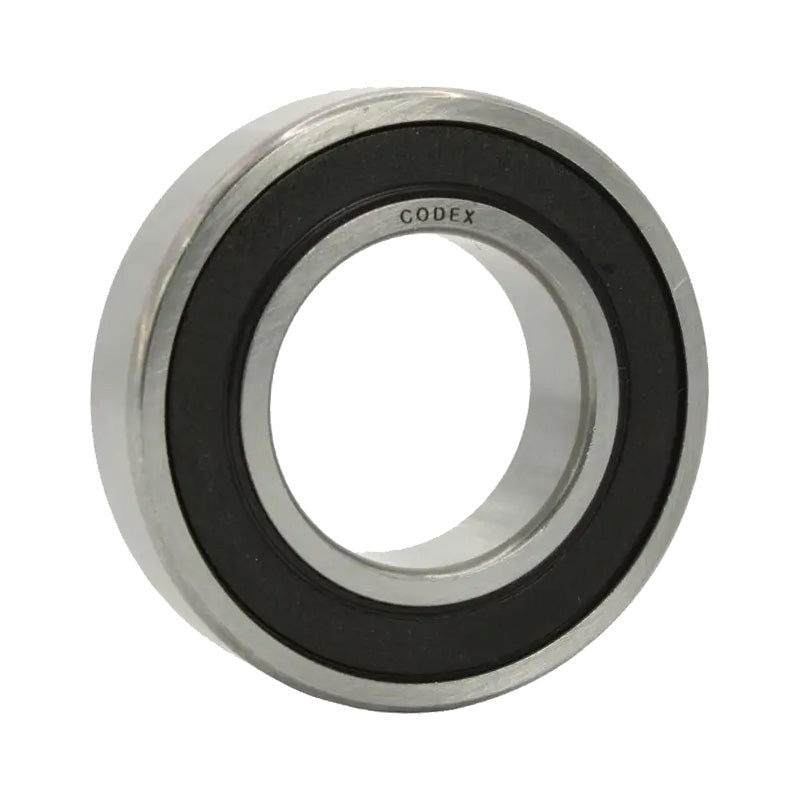

Codex 62042RS Rubber Sealed Deep Groove Ball Bearing 20x47x14mm
Codex 62042RS Rubber Sealed Deep Groove Ball Bearing 20x47x14mm
Regular price
$6.92
ex VAT
Regular price
Sale price
$6.92
ex VAT
Equivalent to: 62042RS 62042RSH 62042RS1 62042RSR 62042RSL 6204LFS 6204EE 6204DU 6204LLU EL202RS 6204PP
In stock
Price Break
4+
$4.64
10+
$4.38
20+
$4.33
30+
$4.27
50+
$4.22
75+
$4.17
100+
$3.91
200+
$3.86
250+
$3.80
500+
$3.75
1000+
$3.65
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B | 14mm |
| Dynamic load C | 13.5 kN |
| Static load Co | 6.55 kN |
| Fatigue load limit Pu | 0.28 |
| Reference speed | 32000 rpm |
| Limiting speed | 10000 rpm |
| Weight | 0.102 kg |
| d1 | -mm |
| D2 | 40.6mm |
| r1r2 | 1mm |
| da min | 25.6mm |
| Da max | 41.4mm |
| ra max | 1mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 13 |
