SKU: 6204-KOY

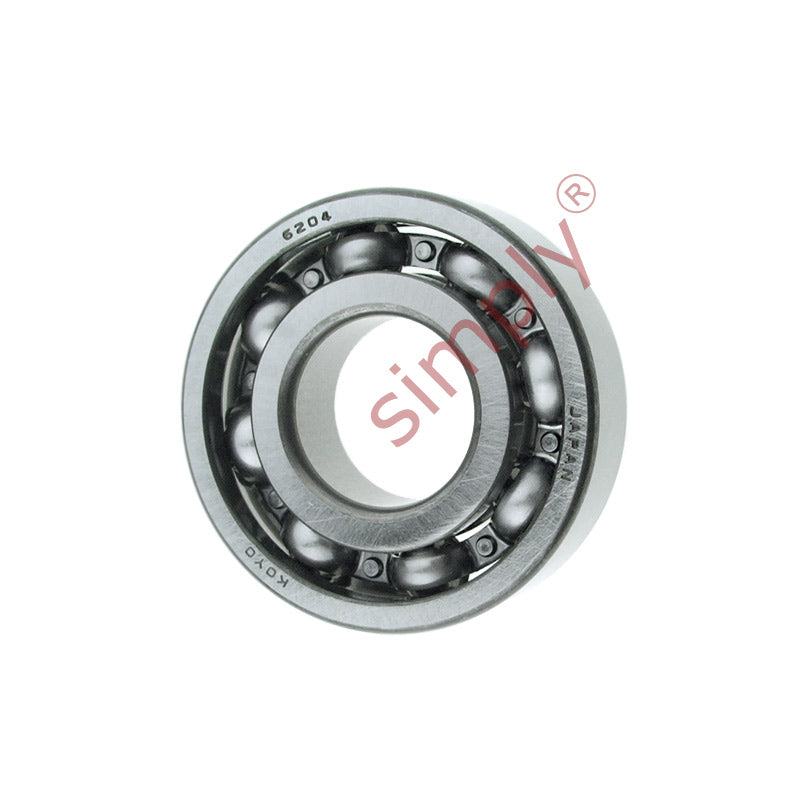

KOYO 6204 Open Deep Groove Ball Bearing 20x47x14mm
KOYO 6204 Open Deep Groove Ball Bearing 20x47x14mm
Regular price
$7.25
ex VAT
Regular price
Sale price
$7.25
ex VAT
In stock
Price Break
5+
$4.86
9+
$4.58
19+
$4.53
29+
$4.47
49+
$4.42
74+
$4.36
99+
$4.09
199+
$4.04
249+
$3.98
499+
$3.93
999+
$3.82
Quantity
Couldn't load pickup availability
Description
Description
|
KOYO Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- None
Technical
Technical
| Inside Diameter d | 20mm |
|---|---|
| Outside Diameter D | 47mm |
| Width B | 14mm |
| Min radius r | 1mm |
| Dynamic load | 12.8 kN |
| Static load | 6.65 kN |
| Max speed in oil | 17000 rpm |
| Max speed in grease | 9700 rpm |
