SKU: 6204-ZZENR-NACHI

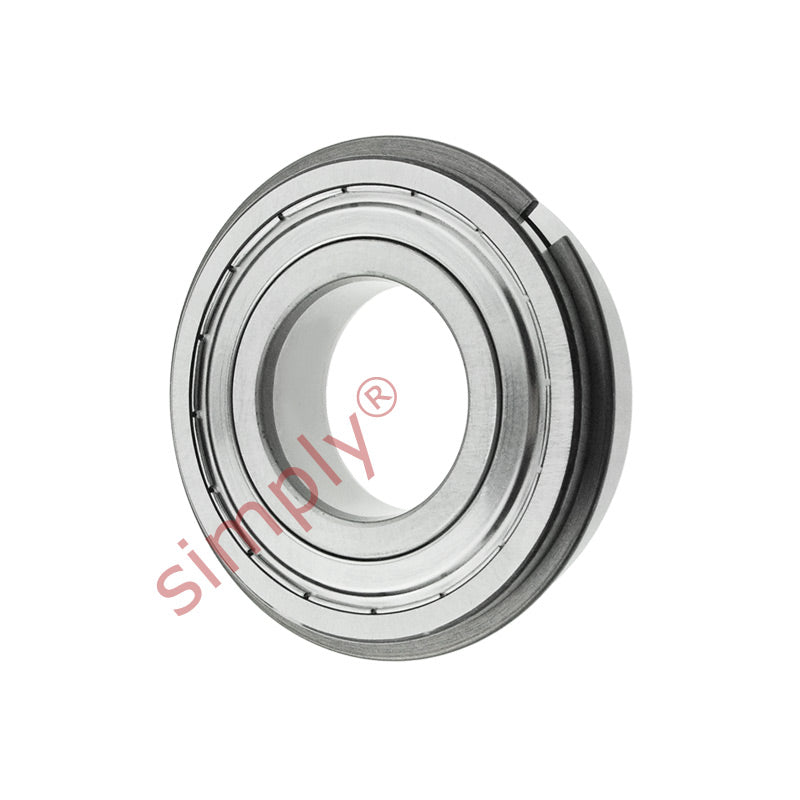

NACHI 6204ZZENR Metal Shielded Deep Groove Ball Bearing 20x47x14mm
NACHI 6204ZZENR Metal Shielded Deep Groove Ball Bearing 20x47x14mm
Regular price
$11.71
ex VAT
Regular price
Sale price
$11.71
ex VAT
Low stock
Price Break
5+
$7.84
9+
$7.40
19+
$7.31
29+
$7.23
49+
$7.14
74+
$7.05
99+
$6.61
199+
$6.52
249+
$6.43
499+
$6.35
999+
$6.17
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Technical
Technical
| Inside Diameter d | 20mm |
|---|---|
| Outside Diameter D | 47mm |
| Width B | 14mm |
| Min radius r | mm |
| Dynamic load | 12800 kN |
| Static load | 6600 kN |
| Max speed | 16000 rpm |
| da min | 26mm |
| Da max | 41mm |
| ra max | 1mm |
| Weight | 0.106 kg |
