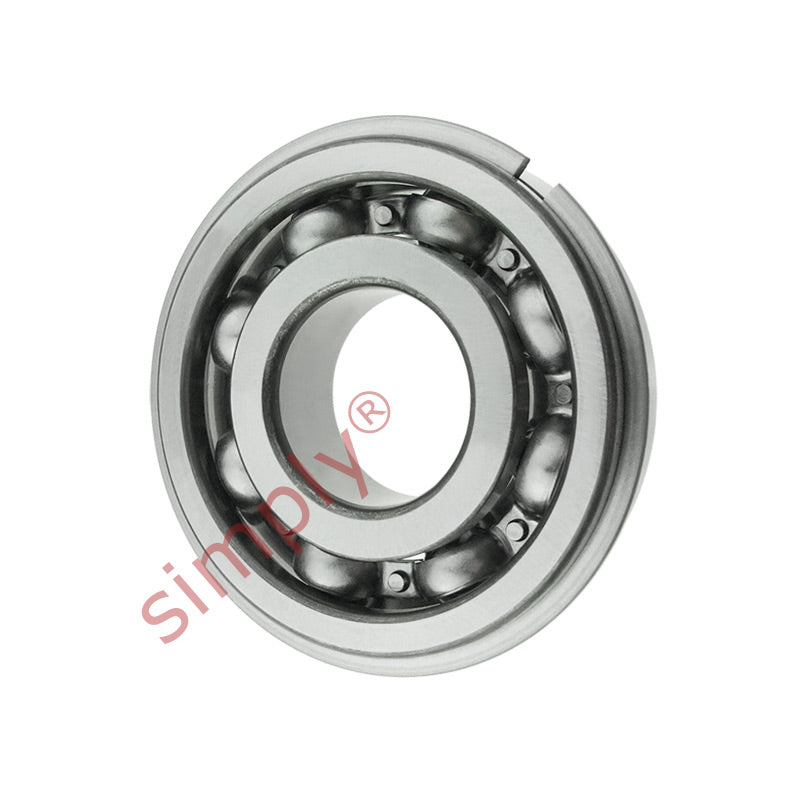

• NSK 6204NR Open Type Deep Groove Ball Bearing With Snap Ring 20x47x14mm
  • NSK
1 2

SKU: 6204NR-NSK

NSK 6204NR Open Type Deep Groove Ball Bearing With Snap Ring 20x47x14mm

NSK 6204NR Open Type Deep Groove Ball Bearing With Snap Ring 20x47x14mm
$17.76 ex VAT
$17.76 ex VAT
Sale Sold out

In stock

Price Break
4+ $11.90
10+ $11.23
20+ $11.10
30+ $10.97
50+ $10.83
75+ $10.70
100+ $10.03
200+ $9.90
250+ $9.76
500+ $9.63
1000+ $9.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Snap ring location in housings, Rubber and Metal Sealed versions available

Brand / Quality:
NSK - High Quality
Inside Diameter:
20mm
Outside Diameter:
47mm
Width:
14mm
Seals / Shields:
None
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
d 20mm
D 47mm
B 14mm
r min 1mm
Dynamic load Cr 12800 N (1300 kgf)
Static load Cor 6600 N (670 kgf)
Factor 13.1
Speed in grease 15000 rpm
Speed in oil 18000 rpm
a max 2.46mm
b min 1.35mm
D1 max 44.6mm
ro max 0.4mm
rN min 0.5mm
D2 max 52.7mm
f max 1.12mm
da2 min 25mm
da2max 26.5mm
Da2max 42mm
ra max 1mm
Dx min 53.5mm
Cy max 3.3mm
Weight 0.107 kg
