SKU: 6204NR-SKF

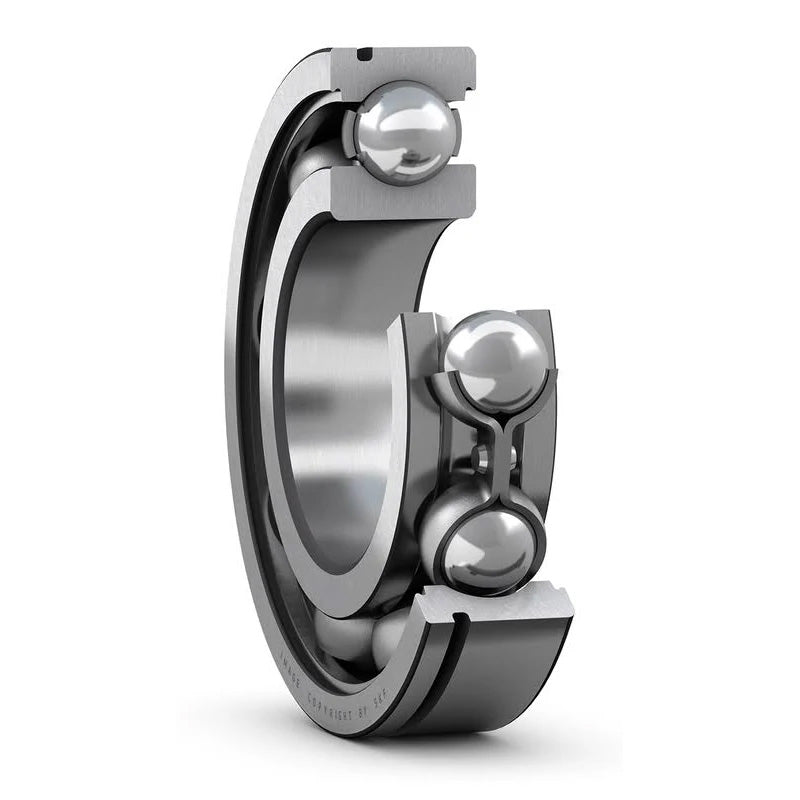

SKF 6204NR Open Type Snap Ring Deep Groove Bearing 20x47x14mm
SKF 6204NR Open Type Snap Ring Deep Groove Bearing 20x47x14mm
Regular price
$22.88
ex VAT
Regular price
Sale price
$22.88
ex VAT
In stock
Price Break
4+
$15.33
10+
$14.46
20+
$14.29
30+
$14.12
50+
$13.95
75+
$13.78
100+
$12.91
200+
$12.74
250+
$12.57
500+
$12.40
1000+
$12.05
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B | 14mm |
| Dynamic load C | 13.5 kN |
| Static load Co | 6.55 kN |
| Fatigue load limit Pu | 0.28 kN |
| Reference speed | 32000 rpm |
| Limiting speed | 20000 rpm |
| Weight | 0.11kg |
| Snap ring | SP 47 |
| d1 | 28.8mm |
| D2 | 40.6mm |
| D3 | 44.6mm |
| D4 | 52.7mm |
| b | 1.35mm |
| f | 1.12mm |
| C | 2.46mm |
| r1r2 min | 1mm |
| ro max | 0.4mm |
| da min | 25.6mm |
| Da max | 41.4mm |
| Db min | 54mm |
| ba min | 1.5mm |
| Ca max | 3.58mm |
| ra max | 1mm |
| Calc Factor kr | 0.025 |
| fo | 13 |
