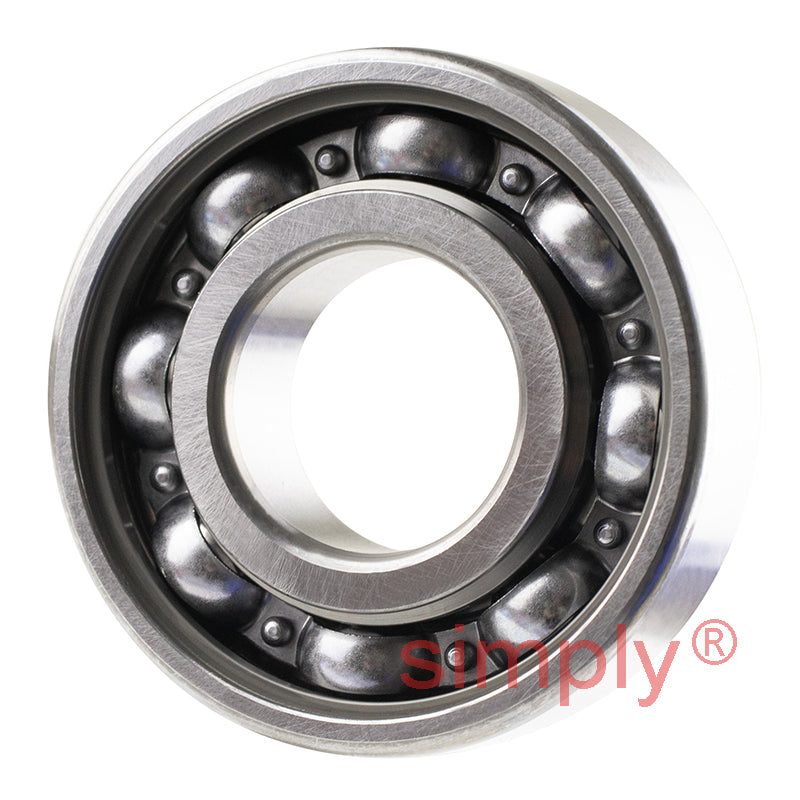

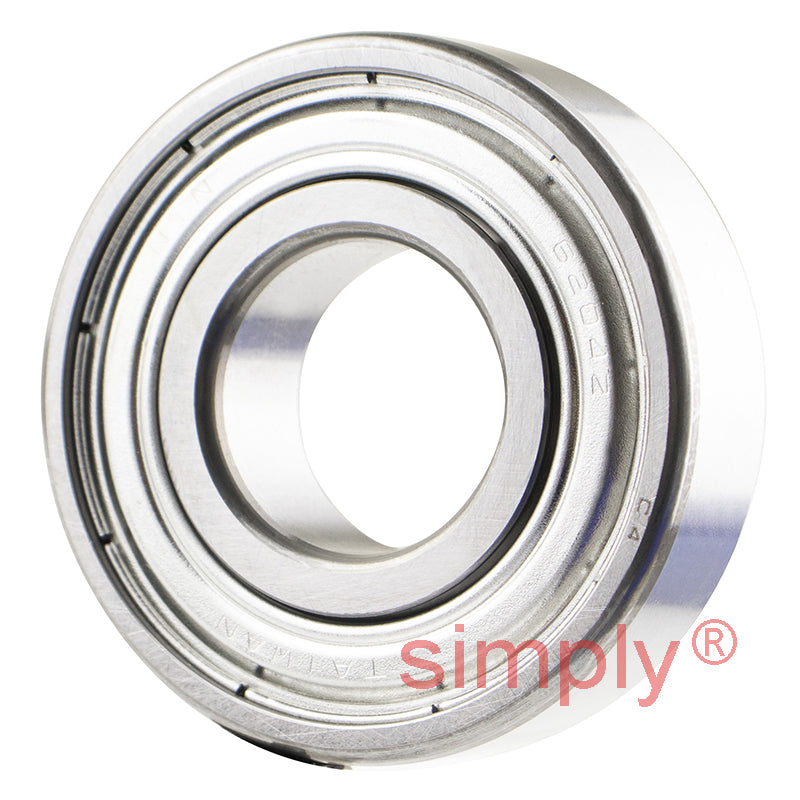

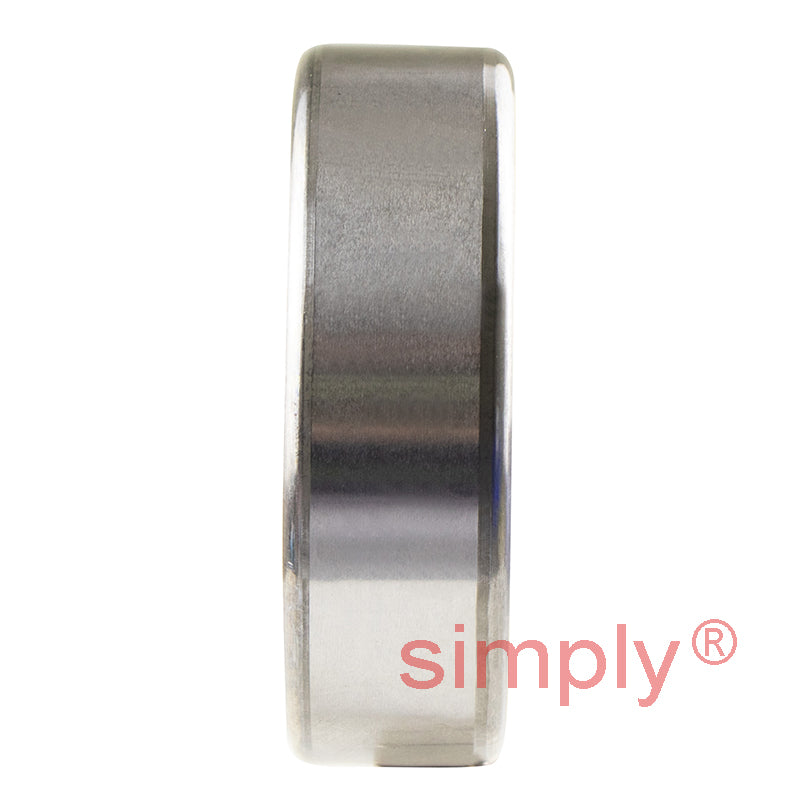

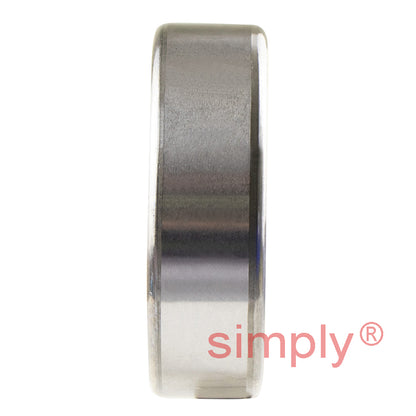

• NTN 6204ZC4 One Metal Shield Type Deep Groove Ball Bearing 20x47x14mm
  • NTN 6204ZC4 One Metal Shield Type Deep Groove Ball Bearing 20x47x14mm
  • NTN 6204ZC4 One Metal Shield Type Deep Groove Ball Bearing 20x47x14mm
1 3

SKU: 6204ZC4-NTN

NTN 6204ZC4 One Metal Shield Type Deep Groove Ball Bearing 20x47x14mm

NTN 6204ZC4 One Metal Shield Type Deep Groove Ball Bearing 20x47x14mm
$13.05 ex VAT
$13.05 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

This bearing has one sided metal shielded and one open side.

DGBZDESC
Brand / Quality:
NTN - High Quality
Inside Diameter:
20mm
Outside Diameter:
47mm
Width:
14mm
Seals / Shields:
Open and Metal Shielded
Clearance:
C4
Technical
--- Bearing dimensions
d 20mm
D 47mm
B 14mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
C<sub>r</sub> 14.2 Kn
C<sub>or</sub> 6.65 kN
C<sub>u</sub> 0.505 kN
f<sub>0</sub> 13.2 kN
Grease 16000 rpm
Oil 18000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 25mm
D<sub>a</sub> Max. 28mm
r<sub>as</sub> Max. 42mm
Weight 1 kg
