SKU: 6204ZZNR-NSK

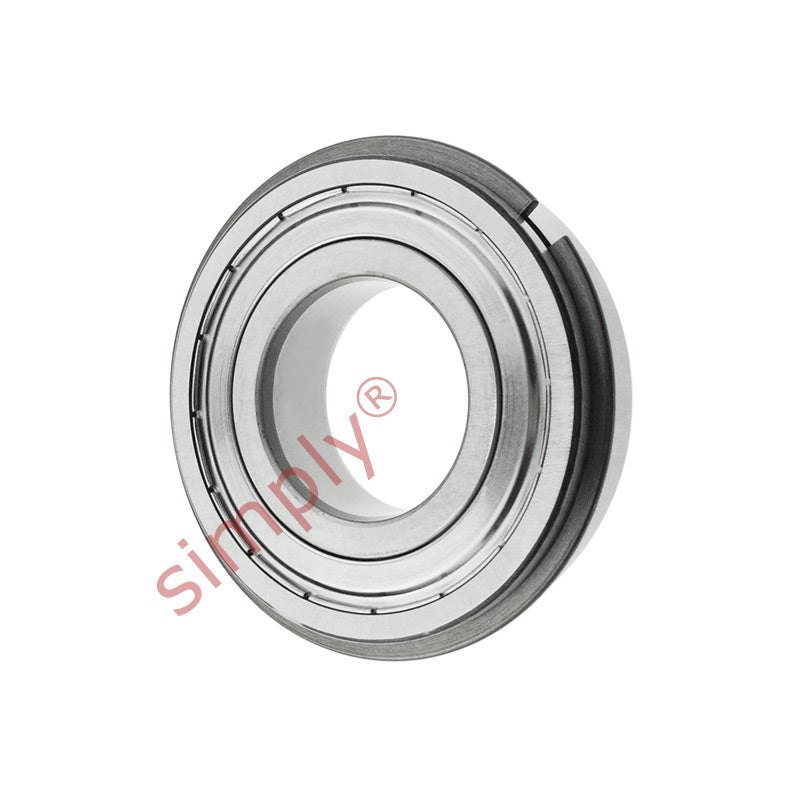

NSK 6204ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 20x47x14mm

Name: NSK 6204ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 20x47x14mm
Brand: NSK
SKU: 6204ZZNR-NSK
Price: 13.01 USD
Availability: InStock

$13.01 ex VAT

Sale Sold out

Equivalent to: 62042ZNR

In stock

Price Break

4+ $8.71

10+ $8.23

20+ $8.13

30+ $8.03

50+ $7.93

75+ $7.83

100+ $7.34

200+ $7.25

250+ $7.15

500+ $7.05

1000+ $6.85

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: NSK - High Quality
Inside Diameter:: 20mm
Outside Diameter:: 47mm
Width:: 14mm
Seals / Shields:: Metal Shielded
Clearance:: * Standard
Snap Ring:: Snap Ring

Technical

d	20mm
D	47mm
B	14mm
r min	1mm
Dynamic load Cr	12800 N (1300 kgf)
Static load Cor	6600 N (670 kgf)
Factor	13.1
Speed in grease	15000 rpm
Speed in oil	18000 rpm
a max	2.46mm
b min	1.35mm
D1 max	44.6mm
ro max	0.4mm
rN min	0.5mm
D2 max	52.7mm
f max	1.12mm
da2 min	25mm
da2max	26.5mm
Da2max	42mm
ra max	1mm
Dx min	53.5mm
Cy max	3.3mm
Weight	0.107 kg
