SKU: 6205-2Z-EU

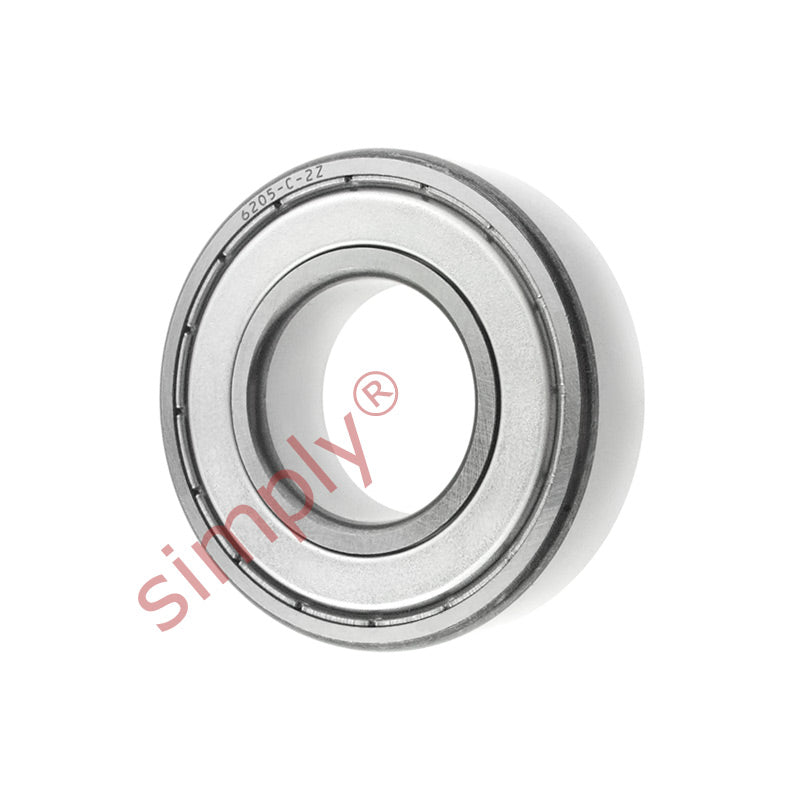

6205ZZ Budget Metal Shielded Deep Groove Ball Bearing 25x52x15mm
Equivalent to: 6205ZZE 6205ZZ 6205.2Z 6205KDD 6205DD 6205FF 62052ZR 6205ZZE 6205ZZ 62052ZR 62052RS2
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B | 15mm |
| r min | 1mm |
| Dynamic load Cr | 14 kN |
| Static load Cor | 7.85 kN |
| Speed in grease | 13000 rpm |
| Speed in oil | 15000 rpm |
