SKU: 6205-NTN

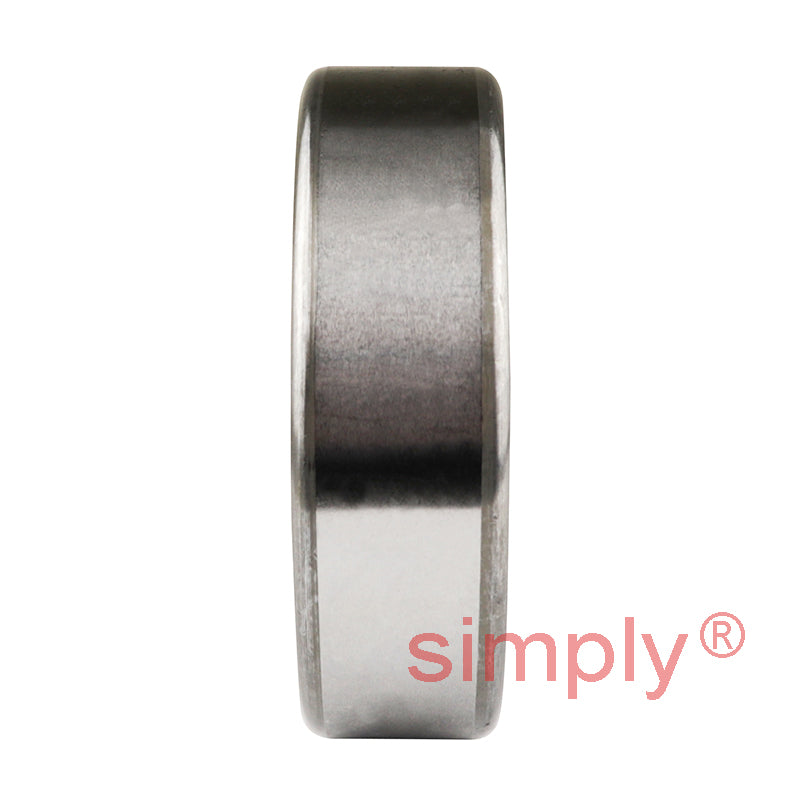

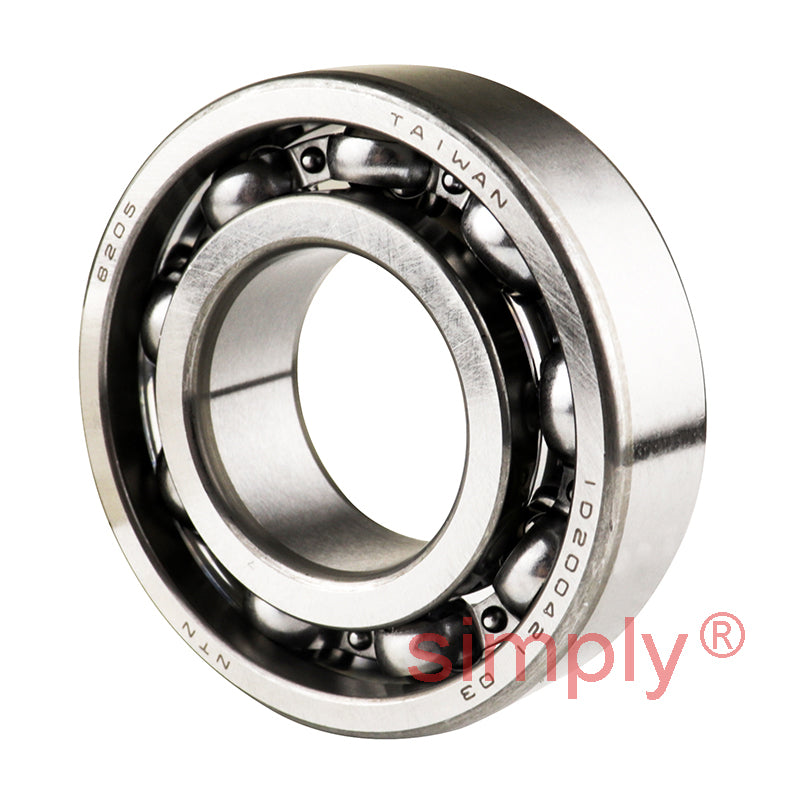

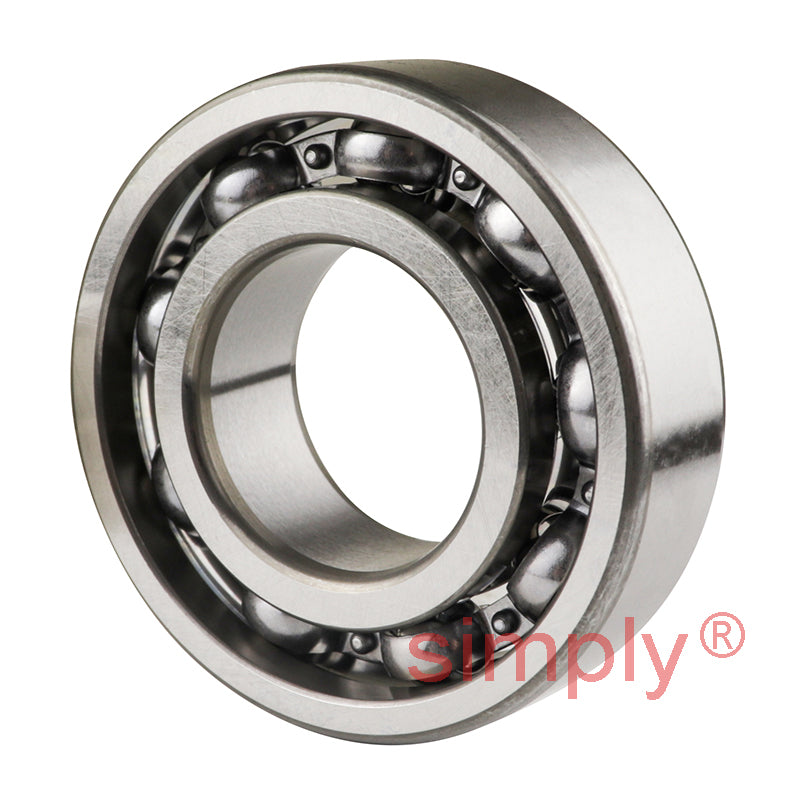

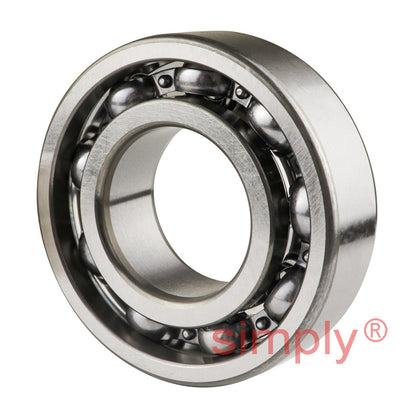

NTN 6205 Open Type Deep Groove Ball Bearing 25x52x15mm
NTN 6205 Open Type Deep Groove Ball Bearing 25x52x15mm
Regular price
$9.49
ex VAT
Regular price
Sale price
$9.49
ex VAT
Equivalent to: 6205CM 205K 1205 205S 6205 3205 2A25
In stock
Price Break
3+
$6.35
5+
$6.00
10+
$5.93
25+
$5.85
49+
$5.78
74+
$5.71
99+
$5.36
199+
$5.28
249+
$5.21
499+
$5.14
999+
$5.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 25mm |
| D | 52mm |
| B | 15mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 15.5 kN |
| C<sub>or</sub> | 7.85 kN |
| C<sub>u</sub> | 0.55 kN |
| f<sub>0</sub> | 13.9 kN |
| Grease | 13000 rpm |
| Oil | 15000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 30mm |
| D<sub>a</sub> Max. | 47mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.128 kg |
