• NTN 6205LLBNR/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals and Snap Ring 25x52x15mm
1 1

SKU: 6205LLBNR/2AS-NTN

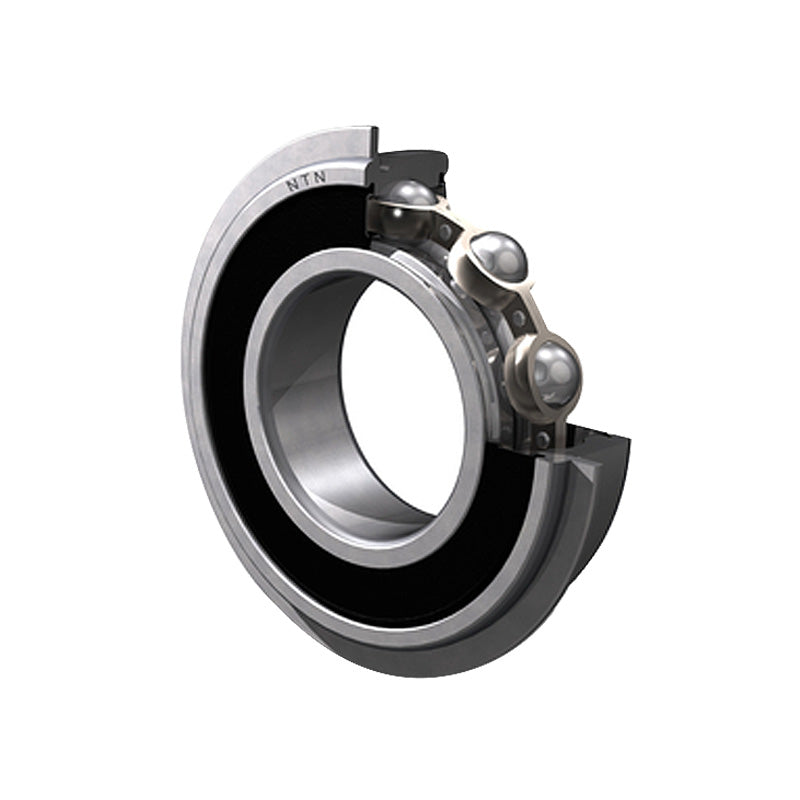

NTN 6205LLBNR/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals and Snap Ring 25x52x15mm

NTN 6205LLBNR/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals and Snap Ring 25x52x15mm
$16.86 ex VAT
$16.86 ex VAT
Sale Sold out

Equivalent to: 6205LLBNRCM 6205LLBNR 62052NKENR 6205VVNR 62052RSLNR 62052RZNR

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
DESC_RSWT
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
25mm
Outside Diameter:
52mm
Width:
15mm
Seals / Shields:
Low Friction
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 25mm
D 52mm
B 15mm
r<sub>s</sub> min 1
--- Loads angles and speeds
rNS Min. 0.5
C<sub>r</sub> 15.5 kN
C<sub>or</sub> 7.85 kN
C<sub>u</sub> 0.55 kN
f<sub>0</sub> 13.9
Grease 13000 rpm
--- Fitting Dimensions
Oil 15000 rpm
D<sub>1</sub> Max. 49.73mm
a Max. 2.46mm
b Min. 1.35mm
r<sub>o</sub> Max. 0.4mm
