SKU: 6205NR-NSK

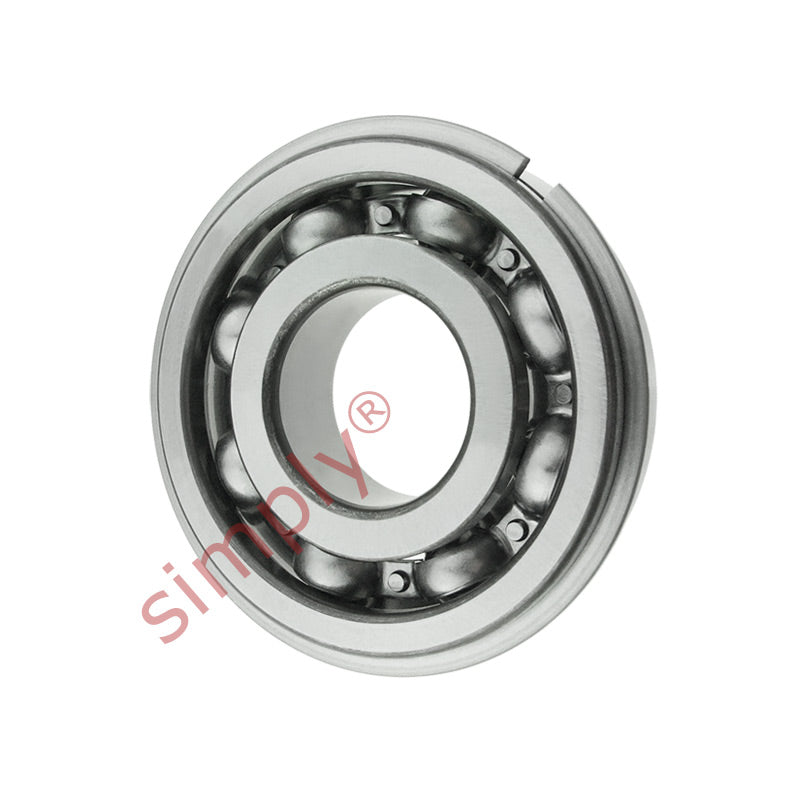

NSK 6205NR Open Type Deep Groove Ball Bearing With Snap Ring 25x52x15mm

Name: NSK 6205NR Open Type Deep Groove Ball Bearing With Snap Ring 25x52x15mm
Brand: NSK
SKU: 6205NR-NSK
Price: 21.60 USD
Availability: InStock

$21.60 ex VAT

Sale Sold out

In stock

Price Break

4+ $14.47

10+ $13.66

20+ $13.49

30+ $13.33

50+ $13.17

75+ $13.01

100+ $12.19

200+ $12.03

250+ $11.87

500+ $11.71

1000+ $11.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: NSK - High Quality
Inside Diameter:: 25mm
Outside Diameter:: 52mm
Width:: 15mm
Seals / Shields:: None
Clearance:: * Standard
Snap Ring:: Snap Ring

Technical

d	25mm
D	52mm
B	15mm
r min	1mm
Dynamic load Cr	14000 N (1430 kgf)
Static load Cor	7850 N (800 kgf)
Factor	13.9
Speed in grease	13000 rpm
Speed in oil	15000 rpm
a max	2.46mm
b min	1.35mm
D1 max	49.73mm
ro max	0.4mm
rN min	0.5mm
D2 max	57.9mm
f max	1.12mm
da2 min	30mm
da2max	32mm
Da2max	47mm
ra max	1mm
Dx min	58.5mm
Cy max	3.3mm
Weight	0.129 kg
