SKU: 6205ZZNR-NACHI

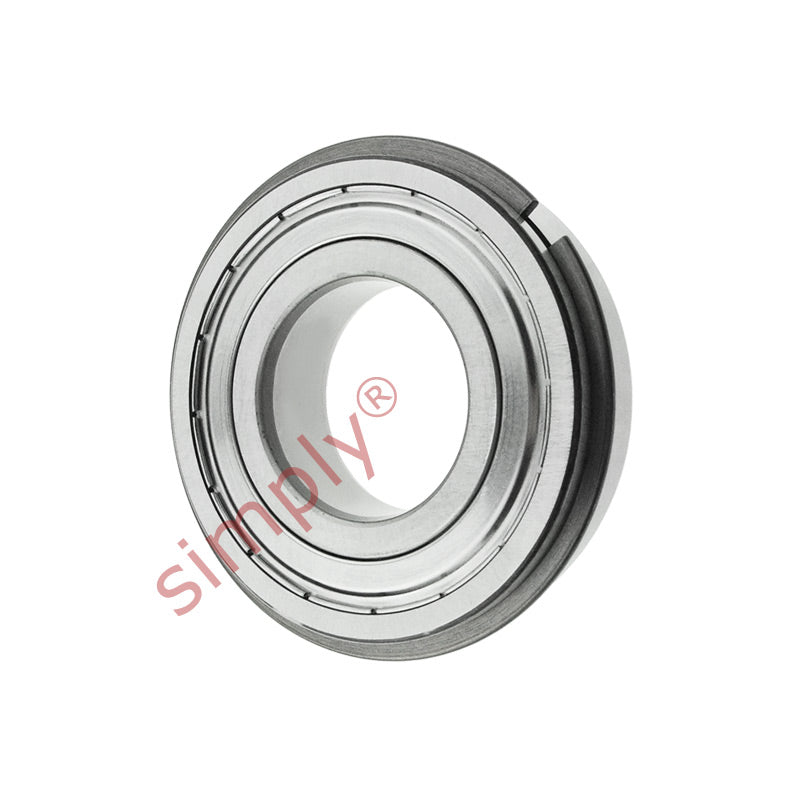

NACHI 6205ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 25x52x15mm

Name: NACHI 6205ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 25x52x15mm
Brand: Nachi
SKU: 6205ZZNR-NACHI
Price: 15.33 USD
Availability: InStock

$15.33 ex VAT

Sale Sold out

Equivalent to: 62052ZNR

In stock

Price Break

4+ $10.27

10+ $9.69

20+ $9.58

30+ $9.46

50+ $9.34

75+ $9.23

100+ $8.65

200+ $8.54

250+ $8.42

500+ $8.31

1000+ $8.08

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Nachi - High Quality
Inside Diameter:: 25mm
Outside Diameter:: 52mm
Width:: 15mm
Seals / Shields:: Metal Shielded
Clearance:: * Standard
Snap Ring:: Snap Ring

Technical

d	25mm
D	52mm
B	15mm
r min	1mm
Dynamic load Cr	14000 N (1430 kgf)
Static load Cor	7850 N (800 kgf)
Factor	13.9
Speed in grease	13000 rpm
Speed in oil	15000 rpm
a max	2.46mm
b min	1.35mm
D1 max	49.73mm
ro max	0.4mm
rN min	0.5mm
D2 max	57.9mm
f max	1.12mm
da2 min	30mm
da2max	32mm
Da2max	47mm
ra max	1mm
Dx min	58.5mm
Cy max	3.3mm
Weight	0.129 kg
