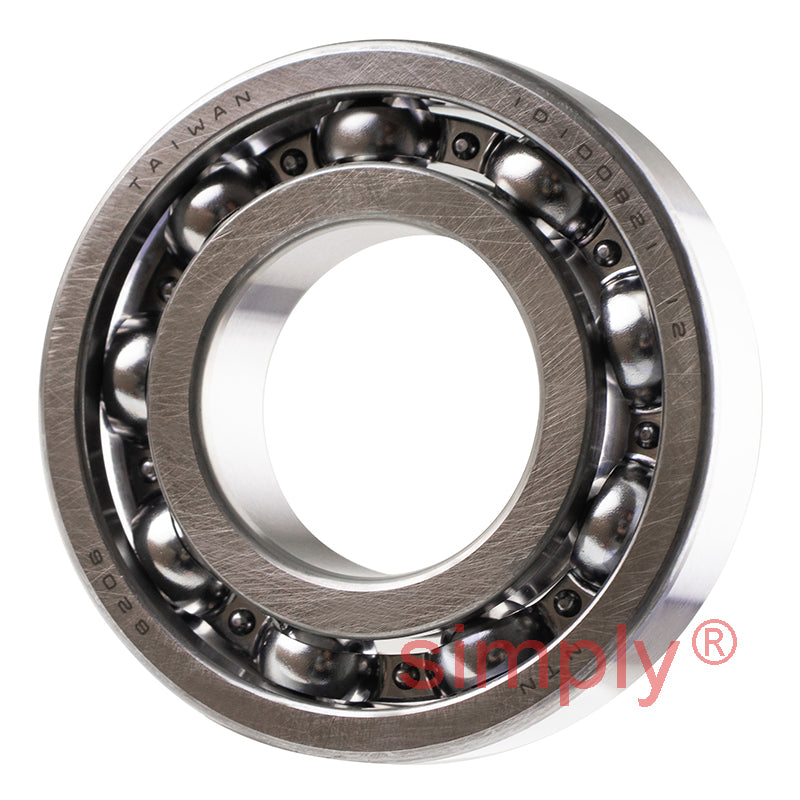

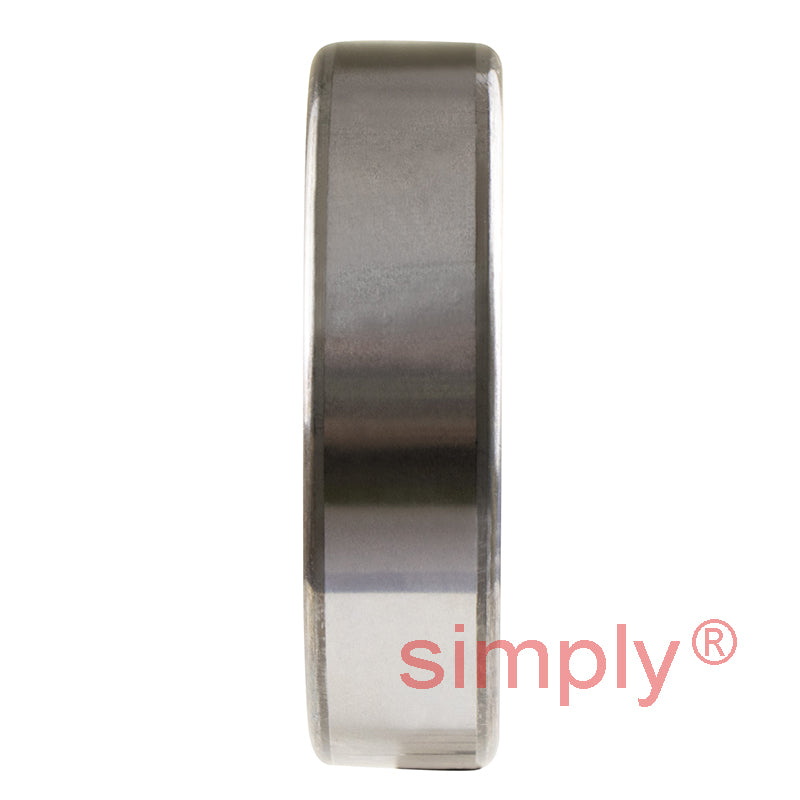

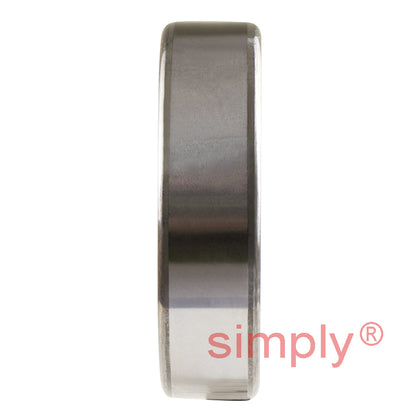

• NTN 6206 Open Type Deep Groove Ball Bearing 30x62x16mm
  • NTN 6206 Open Type Deep Groove Ball Bearing 30x62x16mm
  • NTN 6206 Open Type Deep Groove Ball Bearing 30x62x16mm
  • NTN
1 4

SKU: 6206-NTN

NTN 6206 Open Type Deep Groove Ball Bearing 30x62x16mm

NTN 6206 Open Type Deep Groove Ball Bearing 30x62x16mm
$12.72 ex VAT
$12.72 ex VAT
Sale Sold out

Equivalent to: 6206CM 206K 1206 206S 6206 3206 3A30

In stock

Price Break
3+ $8.52
5+ $8.04
10+ $7.94
25+ $7.85
49+ $7.75
74+ $7.66
99+ $7.18
199+ $7.08
249+ $6.99
499+ $6.89
999+ $6.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
30mm
Outside Diameter:
62mm
Width:
16mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 30mm
D 62mm
B 16mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
C<sub>r</sub> 21.6 kN
C<sub>or</sub> 11.3 kN
C<sub>u</sub> 0.795 kN
f<sub>0</sub> 13.8 kN
Grease 11000 rpm
Oil 13000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 35mm
D<sub>a</sub> Max. 57mm
r<sub>as</sub> Max. 1mm
Weight 0.199 kg
