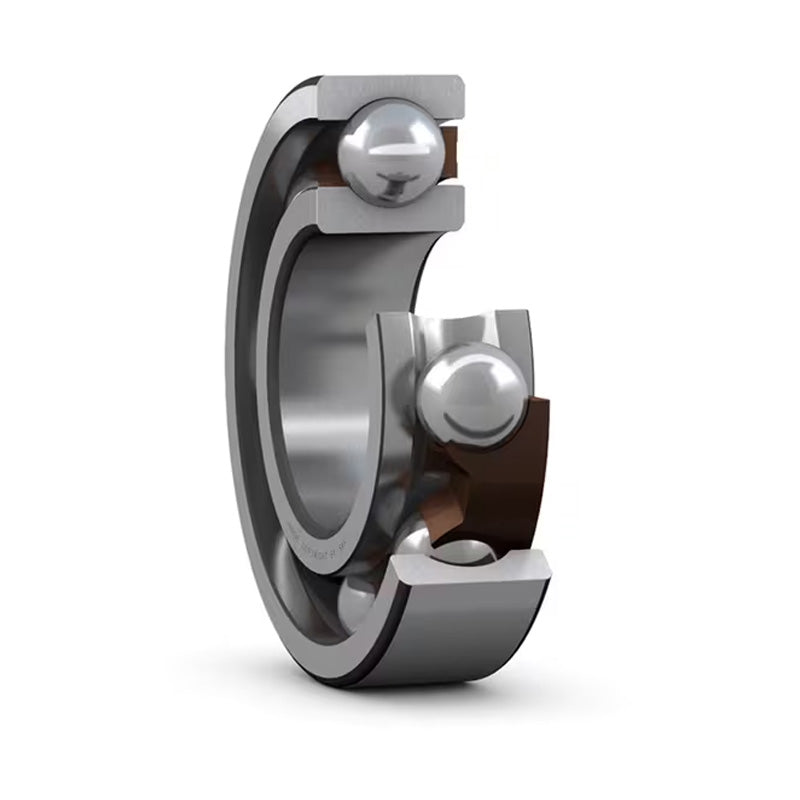

• SKF 6206ETN9C4 Open Deep Groove Ball Bearing with Fibre Cage 30x62x16mm - Allow 2-3 Days
1 1

SKU: 6206ETN9/C4-SKF

SKF 6206ETN9C4 Open Deep Groove Ball Bearing with Fibre Cage 30x62x16mm - Allow 2-3 Days

SKF 6206ETN9C4 Open Deep Groove Ball Bearing with Fibre Cage 30x62x16mm - Allow 2-3 Days
$73.57 ex VAT
$73.57 ex VAT
Sale Sold out

In stock

Price Break
4+ $54.81
10+ $52.59
20+ $51.48
30+ $49.82
50+ $48.72
75+ $45.95
100+ $38.75
200+ $0.00
250+ $0.00
500+ $0.00
1000+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Fibre Cage Open Deep Groove Ball Bearings: Manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Fibre cage bearings have a lower co-efficient of friction and are suited to high speed environments
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost effective solution

Brand / Quality:
SKF - High Quality
Inside Diameter:
30mm
Outside Diameter:
62mm
Width:
16mm
Seals / Shields:
None
Clearance:
C4
Technical
d 30mm
D 62mm
B 16mm
Dynamic load 23.4 kN
Static load 12.9 kn
Fatigue load limit Pu 0.54 kN
Reference speed 24000 rpm
Limiting speed 15000 rpm
Weight 0.19 kg
d1 39.5mm
D1 52.9mm
D2 n/amm
r1r2 min 1mm
da min 35.6mm
Da max 56.4mm
ra max 1mm
Calculation factor kr 0.025
Calculation factor Cor 13
