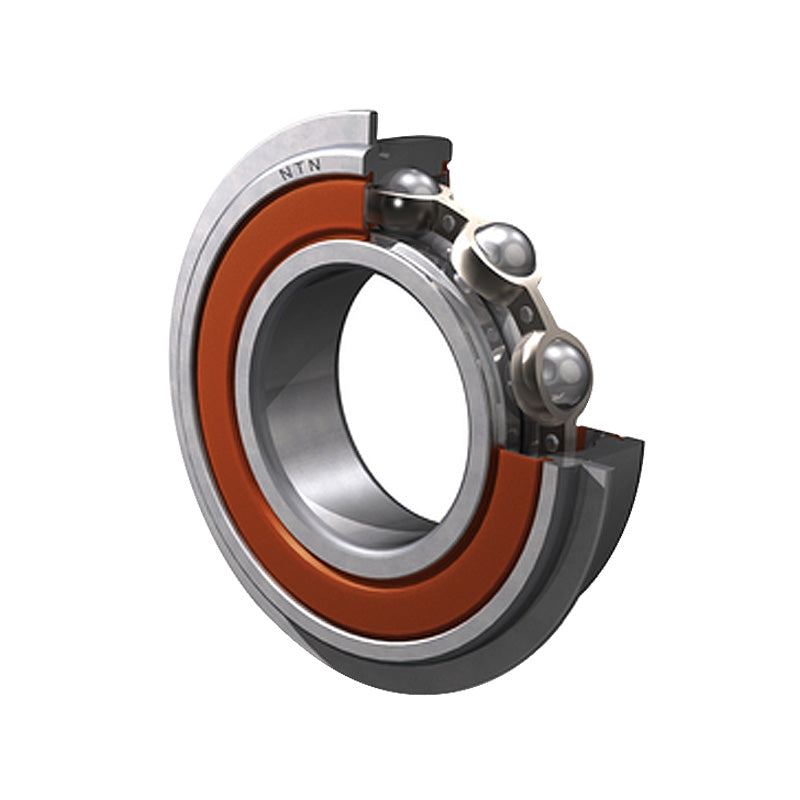

• NTN 6206LLUNR/5K Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 30x62x16mm
1 1

SKU: 6206LLUNR/5K-NTN

NTN 6206LLUNR/5K Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 30x62x16mm

NTN 6206LLUNR/5K Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 30x62x16mm
$24.12 ex VAT
$24.12 ex VAT
Sale Sold out

Equivalent to: 6206LLUNRCM 6206LLUNR 6206NSENR 6206DUNR 6206RSNR 6206RSHNR 6206PNR 6206RSRNR 6206LUNR 62062NSENR 6206DDUNR 62062RSNR 6206-2RSNR 62062RS1NR 62062RSHNR 6206PPNR 62062RSRNR 6206LLUNR 6206RS2NR 62062RS2NR 62062RSLNR 6206LFSNR 6206EENR Z49506 206SZG

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
MHVCVY8FIO
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Brand / Quality:
NTN - High Quality
Inside Diameter:
30mm
Outside Diameter:
62mm
Width:
16mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 30mm
D 62mm
B 16mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 21.6 kN
C<sub>or</sub> 11.3 kN
C<sub>u</sub> 0.795 kN
f<sub>0</sub> 13.8
--- Fitting Dimensions
Speed 7300rpm
D<sub>1</sub> Max. 59.61mm
a Max. 3.28mm
b Min. 1.9mm
r<sub>o</sub> Max. 0.6mm
