SKU: 6207-2RS/C3-EMQ-CDX

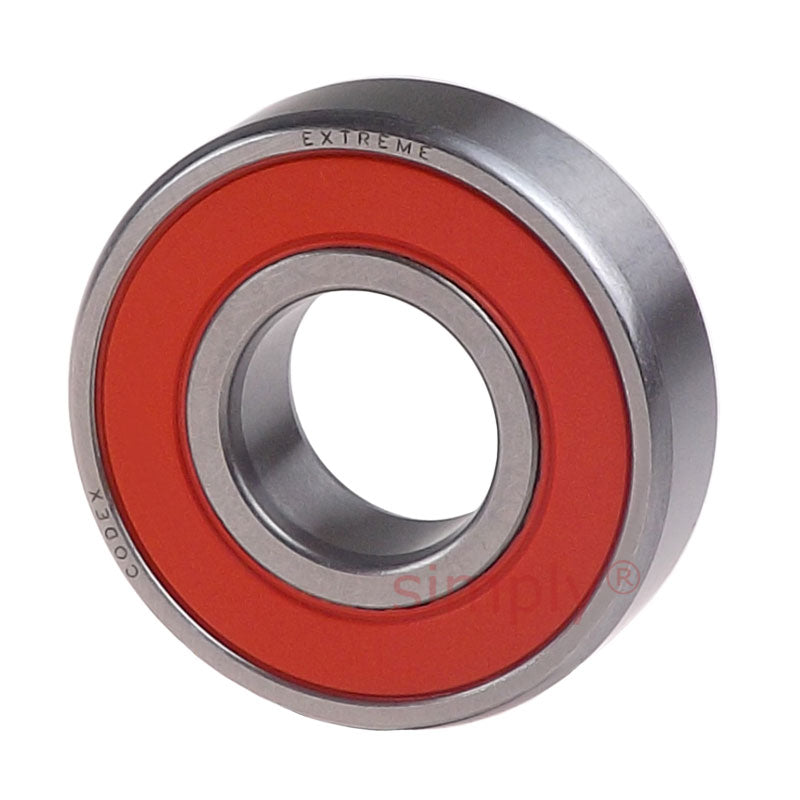

Codex 62072RSC3 Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearing 35x72x17mm

Name: Codex 62072RSC3 Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearing 35x72x17mm
Brand: Codex
SKU: 6207-2RS/C3-EMQ-CDX
Price: 15.90 USD
Availability: InStock

$15.90 ex VAT

Sale Sold out

Equivalent to: 6207-2RS/C3

In stock

Price Break

4+ $10.66

10+ $10.06

20+ $9.94

30+ $9.82

50+ $9.70

75+ $9.58

100+ $8.98

200+ $8.86

250+ $8.74

500+ $8.62

1000+ $8.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 35mm
Outside Diameter:: 72mm
Width:: 17mm
Seals / Shields:: Rubber Sealed
Clearance:: C3

Technical

d	35mm
D	72mm
B	17mm
Dynamic load C	27 kN
Static load Co	15.3 kN
Fatigue load limit Pu	0.655
Reference speed	20000 rpm
Limiting speed	6300 rpm
Weight	0.29 kg
d1	46.9mm
D2	62.7mm
r1r2	1.1mm
da min	42mm
Da max	65mm
ra max	1mm
Calc factor kr	0.025
Calc factor Cor f0	14
