SKU: 6207-2ZNR-SKF

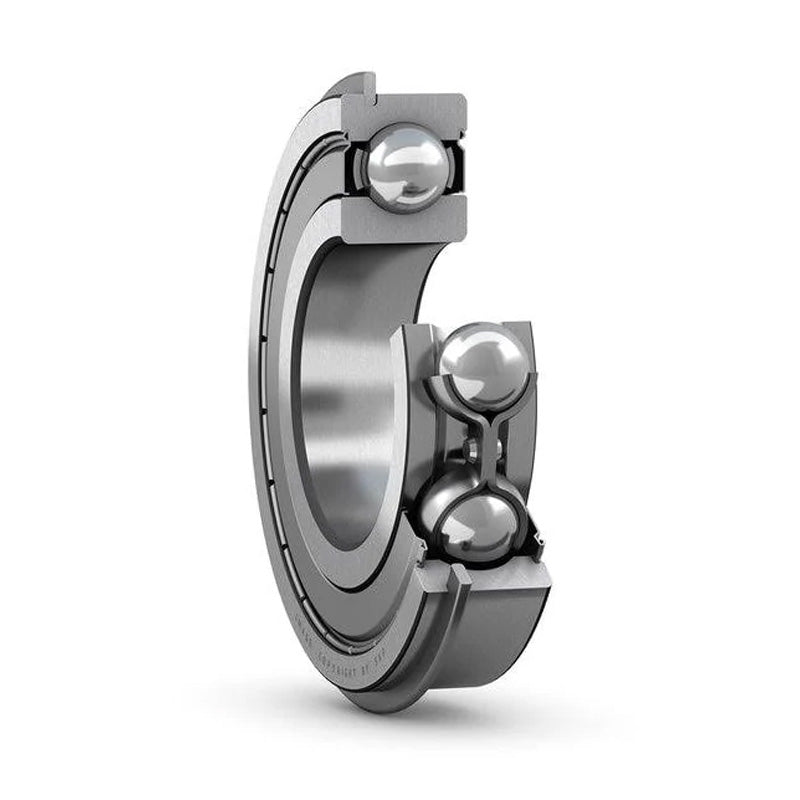

SKF 62072ZNR Sealed Snap Ring Deep Groove Ball Bearing 35x72x17mm
SKF 62072ZNR Sealed Snap Ring Deep Groove Ball Bearing 35x72x17mm
Regular price
$60.75
ex VAT
Regular price
Sale price
$60.75
ex VAT
In stock
Price Break
4+
$40.69
10+
$38.40
20+
$37.94
30+
$37.49
50+
$37.03
75+
$36.57
100+
$34.29
200+
$33.83
250+
$33.37
500+
$32.91
1000+
$32.00
Quantity
Couldn't load pickup availability
Description
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 17mm |
| Dynamic load C | 27 kN |
| Static load Co | 15.3 kN |
| Fatigue load limit Pu | 0.655 kN |
| Reference speed | 20000 rpm |
| Limiting speed | 13000 rpm |
| Weight | 0.3 kg |
| Snap ring | SP 72 |
| d1 | 46.9mm |
| D2 | 62.7mm |
| D3 | 68.81mm |
| D4 | 78.6mm |
| b | 1.9mm |
| f | 1.7mm |
| C | 3.28mm |
| r1r2 min | 1.1mm |
| ro max | 0.6mm |
| da max | 42mm |
| Da max | 46.8mm |
| Db min | 65mm |
| ba min | 80mm |
| Ca max | 2.2mm |
| ra max | 4.98mm |
| Calculation factor kr | 1 |
| Calculation factor f0 | 0.025 |
