• NTN 6207 Open Type Deep Groove Ball Bearing 35x72x17mm
  • NTN 6207 Open Type Deep Groove Ball Bearing 35x72x17mm
  • NTN 6207 Open Type Deep Groove Ball Bearing 35x72x17mm
  • NTN
1 4

SKU: 6207-NTN

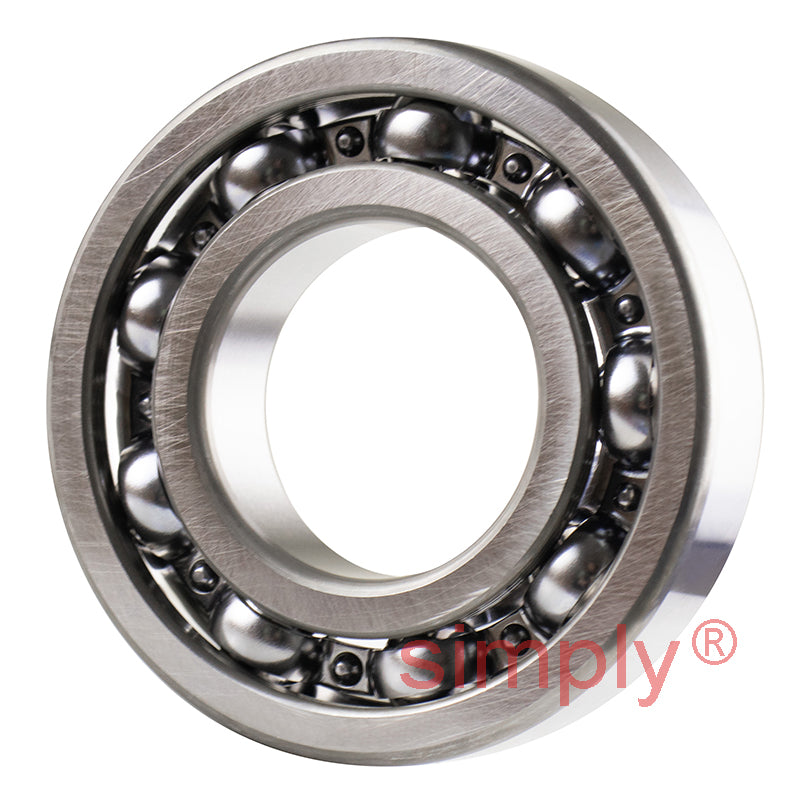

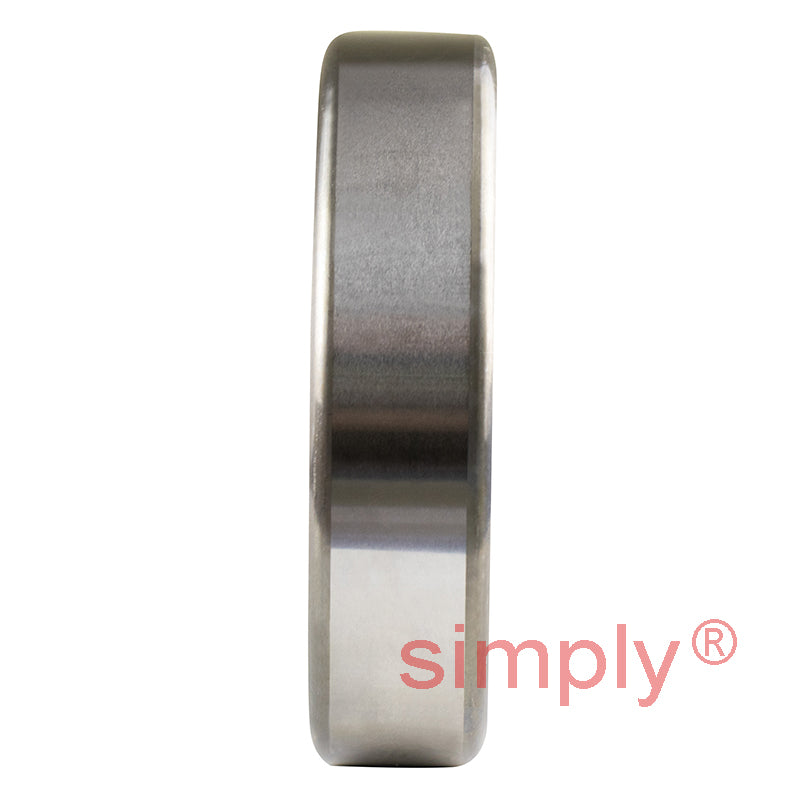

NTN 6207 Open Type Deep Groove Ball Bearing 35x72x17mm

NTN 6207 Open Type Deep Groove Ball Bearing 35x72x17mm
$16.74 ex VAT
$16.74 ex VAT
Sale Sold out

Equivalent to: 6207CM 207K 1207 207S 6207 3207 4A

In stock

Price Break
3+ $11.21
5+ $10.58
10+ $10.46
25+ $10.33
49+ $10.21
74+ $10.08
99+ $9.45
199+ $9.32
249+ $9.20
499+ $9.07
999+ $8.82

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Outside Diameter:
72mm
Width:
17mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 35mm
D 72mm
B 17mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
C<sub>r</sub> 28.4 kN
C<sub>or</sub> 15.3 kN
C<sub>u</sub> 1.09 kN
f<sub>0</sub> 13.8 kN
Grease 9800 rpm
Oil 11000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 41.5mm
D<sub>a</sub> Max. 65.5mm
r<sub>as</sub> Max. 1mm
Weight 0.288 kg
