SKU: 6207-ZZE-NACHI

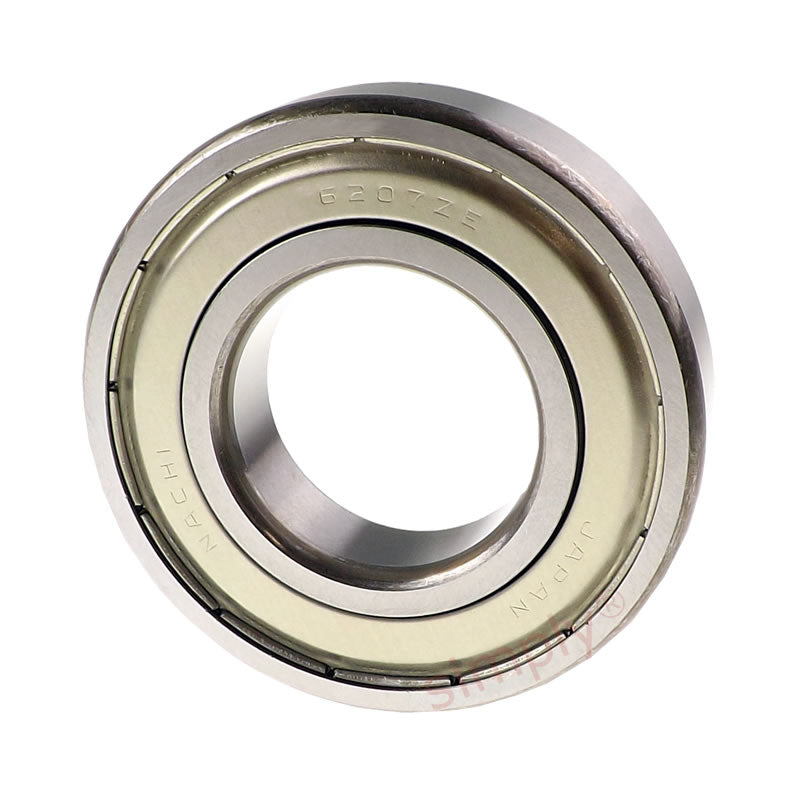

NACHI 6207ZZE Metal Shielded Deep Groove Ball Bearing 35x72x17mm
NACHI 6207ZZE Metal Shielded Deep Groove Ball Bearing 35x72x17mm
Regular price
$16.81
ex VAT
Regular price
Sale price
$16.81
ex VAT
Equivalent to: 6207ZZ 62072Z 6207.2Z 6207KDD 6207DD 62072ZR 6207FF
In stock
Price Break
5+
$11.26
9+
$10.62
19+
$10.50
29+
$10.37
49+
$10.24
74+
$10.12
99+
$9.49
199+
$9.36
249+
$9.23
499+
$9.11
999+
$8.85
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 35mm |
|---|---|
| Outside Diameter D | 72mm |
| Width B | 17mm |
| Min radius r | 1.1mm |
| Dynamic load | 25700 kN |
| Static load | 15300 kN |
| Max speed | 9800 rpm |
| da min | 42mm |
| Da max | 65mm |
| ra max | 1mm |
| Weight | 0.288 kg |
