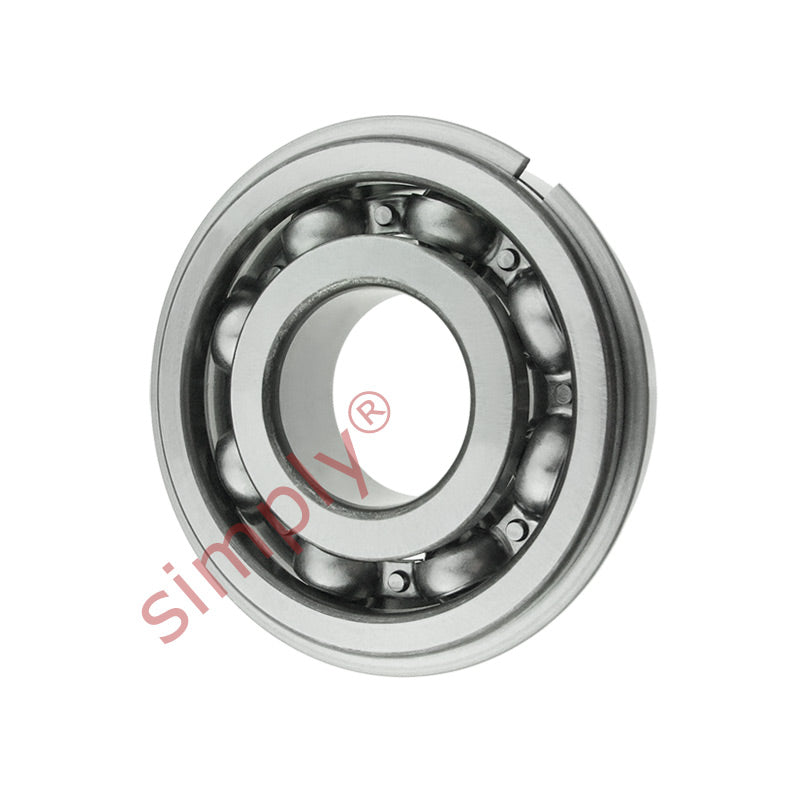

• NSK 6207NR Open Type Deep Groove Ball Bearing With Snap Ring 35x72x17mm
  • NSK
1 2

SKU: 6207NR-NSK

NSK 6207NR Open Type Deep Groove Ball Bearing With Snap Ring 35x72x17mm

NSK 6207NR Open Type Deep Groove Ball Bearing With Snap Ring 35x72x17mm
$35.69 ex VAT
$35.69 ex VAT
Sale Sold out

In stock

Price Break
4+ $23.90
10+ $22.56
20+ $22.29
30+ $22.02
50+ $21.75
75+ $21.49
100+ $20.14
200+ $19.87
250+ $19.61
500+ $19.34
1000+ $18.80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NSK - High Quality
Inside Diameter:
35mm
Outside Diameter:
72mm
Width:
17mm
Seals / Shields:
None
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
d 35mm
D 72mm
B 17mm
r min 1.1mm
Dynamic load Cr 25700 N (2620 kgf)
Static load Cor 15300 N (1560 kgf)
Factor 13.8
Speed in grease 9500 rpm
Speed in oil 11000 rpm
a max 3.28mm
b min 1.9mm
D1 max 68.81mm
ro max 0.6mm
rN min 0.5mm
D2 max 78.6mm
f max 1.7mm
da2 min 41.5mm
da2max 44.5mm
Da2max 65.5mm
ra max 1mm
Dx min 80mm
Cy max 4.6mm
Weight 0.284 kg
