• NTN 6207NR Open Type Deep Groove Ball Bearing with Snap Ring 35x72x17mm
  • NTN
1 2

SKU: 6207NR-NTN

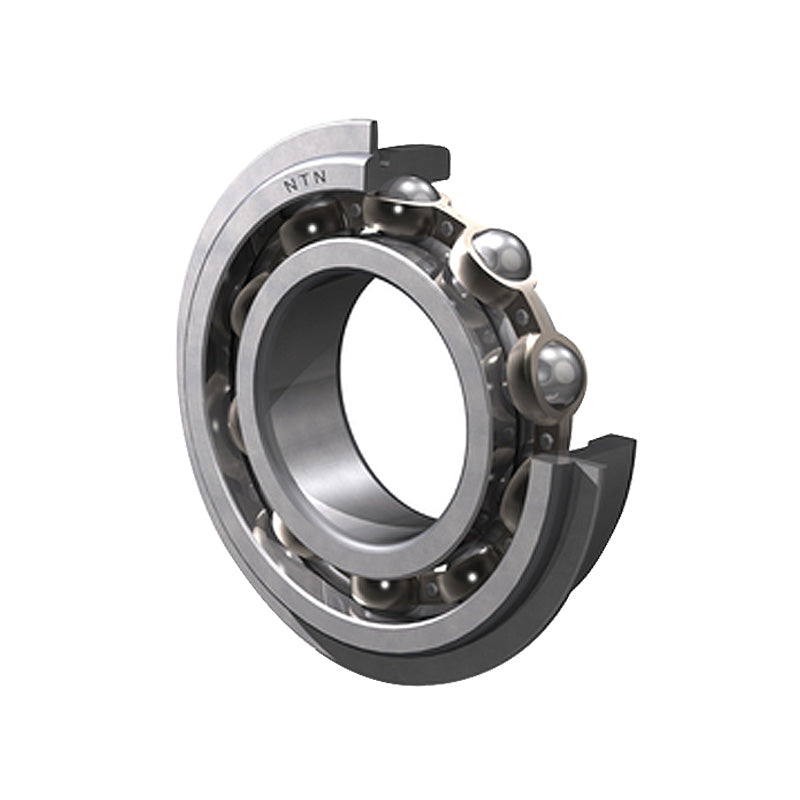

NTN 6207NR Open Type Deep Groove Ball Bearing with Snap Ring 35x72x17mm

NTN 6207NR Open Type Deep Groove Ball Bearing with Snap Ring 35x72x17mm
$39.90 ex VAT
$39.90 ex VAT
Sale Sold out

Equivalent to: 6207NRCM 207KG 207SG 43207

In stock

Price Break
3+ $26.73
5+ $25.23
10+ $24.92
25+ $24.62
49+ $24.32
74+ $24.02
99+ $22.52
199+ $22.22
249+ $21.92
499+ $21.62
999+ $21.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Outside Diameter:
72mm
Width:
17mm
Seals / Shields:
None
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 35mm
D 72mm
B 17mm
r<sub>s</sub> min 1.1mm
rNS Min. 0.5mm
--- Loads angles and speeds
C<sub>r</sub> 28.4 kN
C<sub>or</sub> 15.3 kN
C<sub>u</sub> 1.09 kN
f<sub>0</sub> 13.8 kN
Grease 9800 rpm
Oil 11000 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 68.81mm
a Max. 3.28mm
b Min. 1.9mm
r<sub>o</sub> Max. 0.6mm
D<sub>2</sub> Max. 78.6mm
f Max. 1.7mm
--- Fitting Dimensions
d<sub>a</sub> Min. 41.5mm
d<sub>a</sub> Max. 45mm
D<sub>a</sub> Max. 65.5mm
D<sub>X</sub> (approx) 80mm
C<sub>Y</sub> Max. 4.6mm
C<sub>Z</sub> Min. 1.7mm
r<sub>as</sub> Max. 1mm
r<sub>Nas</sub> Max. 0.5mm
Weight 0.288 kg
