SKU: 6207NR-SKF

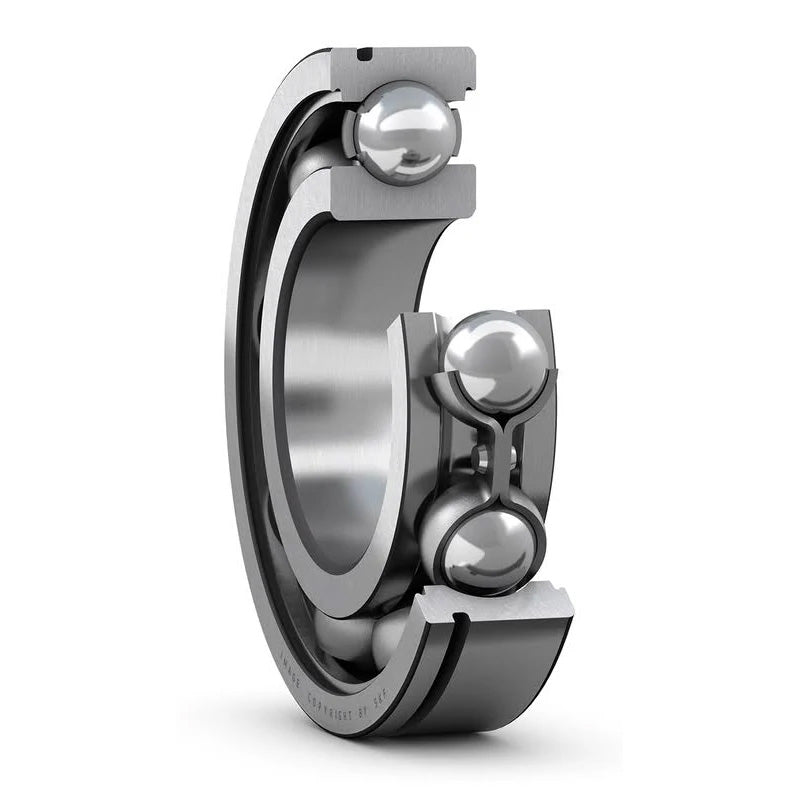

SKF 6207NR Open Type Snap Ring Deep Groove Bearing 35x72x17mm
SKF 6207NR Open Type Snap Ring Deep Groove Bearing 35x72x17mm
Regular price
$43.05
ex VAT
Regular price
Sale price
$43.05
ex VAT
In stock
Price Break
4+
$28.83
10+
$27.21
20+
$26.89
30+
$26.56
50+
$26.24
75+
$25.92
100+
$24.30
200+
$23.97
250+
$23.65
500+
$23.33
1000+
$22.68
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 17mm |
| Dynamic load C | 27 kN |
| Static load Co | 15.3 kN |
| Fatigue load limit Pu | 655 kN |
| Reference speed | 20000 rpm |
| Limiting speed | 13000 rpm |
| Weight | 0.3kg |
| Snap ring | SP 72 |
| d1 | 46.9mm |
| D2 | 62.7mm |
| D3 | 68.81mm |
| D4 | 78.6mm |
| b | 1.9mm |
| f | 1.7mm |
| C | 3.28mm |
| r1r2 min | 1.1mm |
| ro max | 0.6mm |
| da min | 42mm |
| Da max | 65mm |
| Db min | 80mm |
| ba min | 2.2mm |
| Ca max | 4.98mm |
| ra max | 1mm |
| Calc Factor kr | 0.025 |
| fo | 14 |
