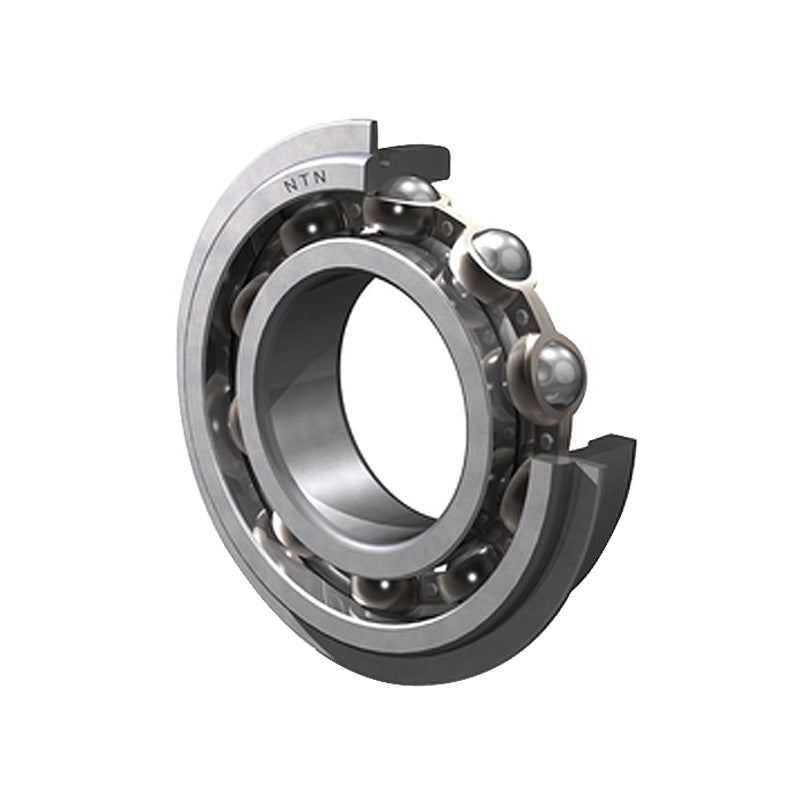

NTN 6207ZNR One Metal Shield Type Deep Groove Ball Bearing with Snap Ring 35x72x17mm

NTN 6207ZNR One Metal Shield Type Deep Groove Ball Bearing with Snap Ring 35x72x17mm
$44.95 ex VAT
$44.95 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

This bearing has one sided metal shielded and one open side.

HEAD_SKZN
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Outside Diameter:
72mm
Width:
17mm
Seals / Shields:
Open and Metal Shielded
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 35mm
D 72mm
B 17mm
r<sub>s</sub> min 1.1mm
rNS Min. 0.5
--- Loads angles and speeds
C<sub>r</sub> 28.4 Kn
C<sub>or</sub> 15.3 kN
C<sub>u</sub> 1.09 kN
f<sub>0</sub> 13.8 kN
Grease 9800 rpm
Oil 11000 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 68.81
a Max. 3.28
b Min. 1.9
r<sub>o</sub> Max. 0.6
D<sub>2</sub> Max. 78.6
f Max. 1.7
--- Fitting Dimensions
d<sub>a</sub> Min. 41.5mm
d<sub>a</sub> Max. 45mm
D<sub>a</sub> Max. 65.5mm
D<sub>X</sub> (approx) 80
C<sub>Y</sub> Max. 4.6
C<sub>Z</sub> Min. 1.7
r<sub>as</sub> Max. 1mm
r<sub>Nas</sub> Max. 0.5
Weight 0.288 kg
