• NTN 6207ZZNRC3/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 35x72x17mm
1 1

SKU: 6207ZZNRC3/2AS-NTN

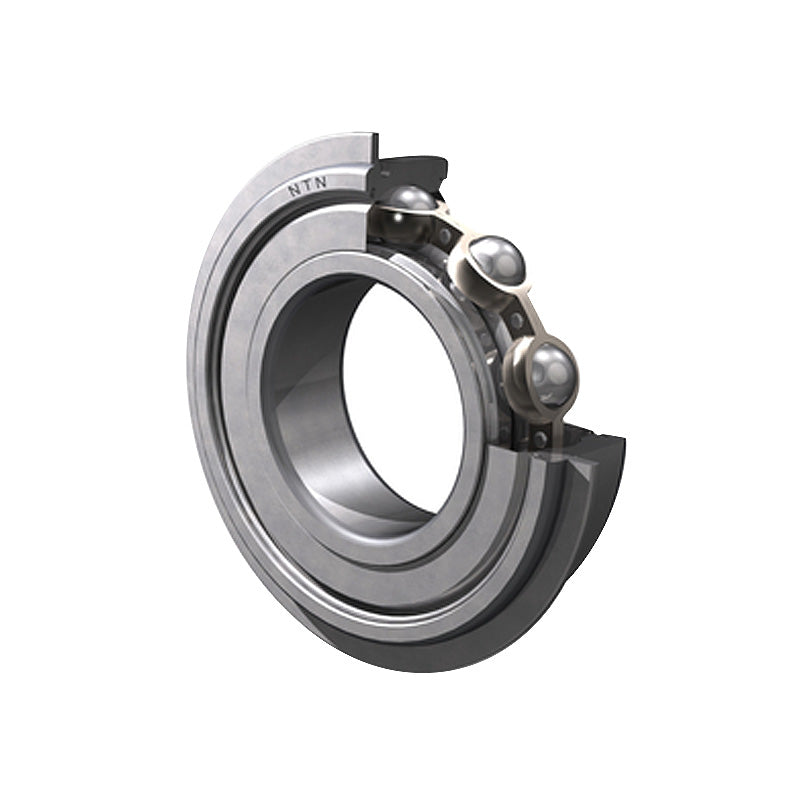

NTN 6207ZZNRC3/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 35x72x17mm

NTN 6207ZZNRC3/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 35x72x17mm
$64.75 ex VAT
$64.75 ex VAT
Sale Sold out

Equivalent to: 6207ZZNRC3 62072ZNRC3 6207ZZNRC3 62072ZRNRC3 6207ZZENRC3 6207FFNRC3 6207DDNRC3 6207DDCNRC3 6207KDDCNRC3 EL352ZNRC3 EL35ZZNRC3 9107KDDGC3 4773L07C3 107KSFFGC3

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
HEAD_SKZN
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Outside Diameter:
72mm
Width:
17mm
Seals / Shields:
Metal Shielded
Clearance:
C3
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 35mm
D 72mm
B 17mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 28.4 kN
C<sub>or</sub> 15.3 kN
C<sub>u</sub> 1.09 kN
f<sub>0</sub> 13.8 rpm
Grease 9800 rpm
--- Fitting Dimensions
Oil 11000 rpm
D<sub>1</sub> Max. 68.81mm
a Max. 3.28mm
b Min. 1.9mm
r<sub>o</sub> Max. 0.6mm
