• NTN 6208 Open Type Deep Groove Ball Bearing 40x80x18mm
  • NTN 6208 Open Type Deep Groove Ball Bearing 40x80x18mm
  • NTN 6208 Open Type Deep Groove Ball Bearing 40x80x18mm
  • NTN
1 4

SKU: 6208-NTN

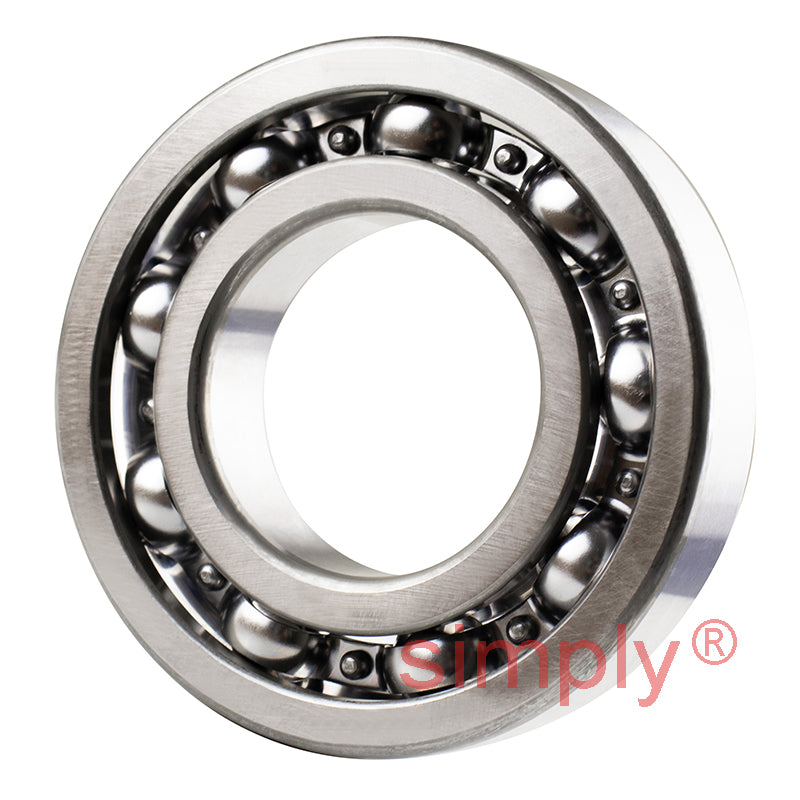

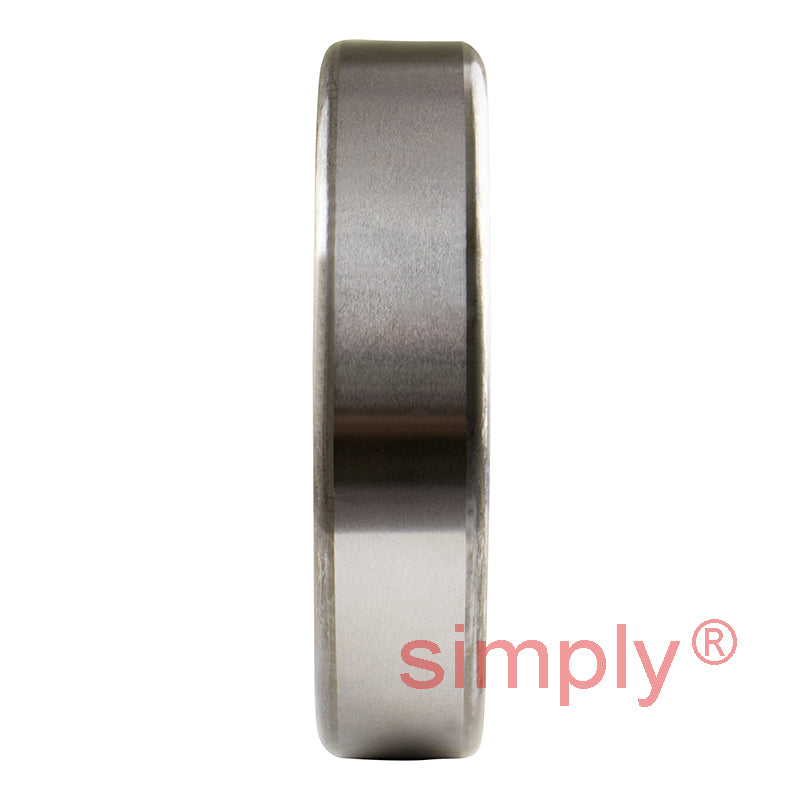

NTN 6208 Open Type Deep Groove Ball Bearing 40x80x18mm

NTN 6208 Open Type Deep Groove Ball Bearing 40x80x18mm
$21.59 ex VAT
$21.59 ex VAT
Sale Sold out

Equivalent to: 6208CM 208K 1208 208S 6208 3208 5A

In stock

Price Break
3+ $14.46
5+ $13.65
10+ $13.49
25+ $13.33
49+ $13.16
74+ $13.00
99+ $12.19
199+ $12.03
249+ $11.86
499+ $11.70
999+ $11.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Outside Diameter:
80mm
Width:
18mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 40mm
D 80mm
B 18mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
C<sub>r</sub> 32.5 kN
C<sub>or</sub> 17.8 kN
C<sub>u</sub> 1.24 kN
f<sub>0</sub> 14 kN
Grease 8700 rpm
Oil 10000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 46.5mm
D<sub>a</sub> Max. 73.5mm
r<sub>as</sub> Max. 1mm
Weight 0.366 kg
