SKU: 6209-2RSR-FAG

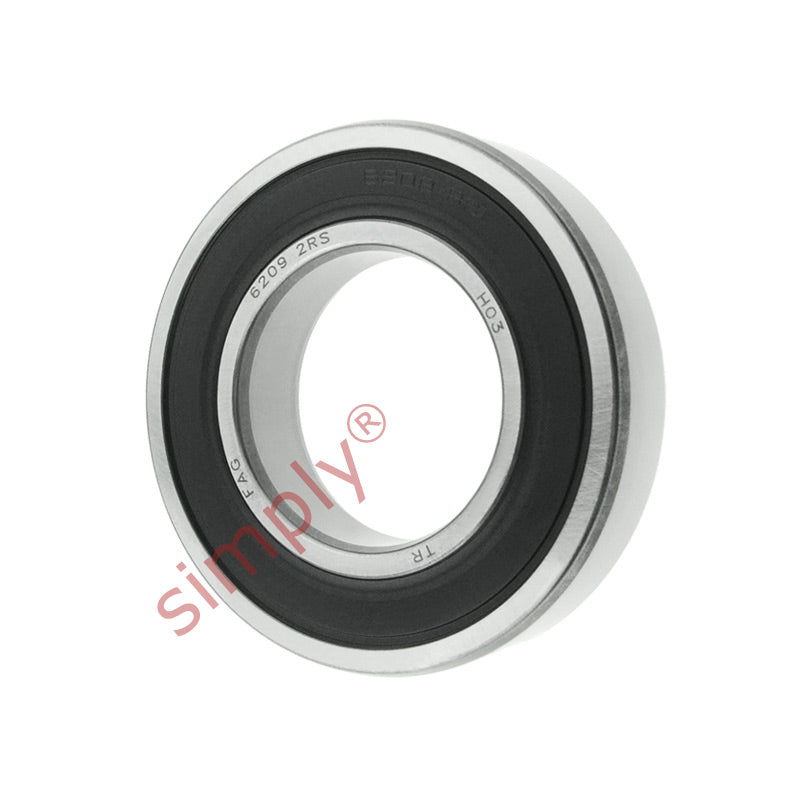

FAG 62092RSR Rubber Sealed Deep Groove Ball Bearing 45x85x19mm
FAG 62092RSR Rubber Sealed Deep Groove Ball Bearing 45x85x19mm
Regular price
$33.32
ex VAT
Regular price
Sale price
$33.32
ex VAT
Equivalent to: 6209NSE 6209DU 6209RS 6209RSH 6209P 6209RSR 6209LU 62092NSE 6209DDU 62092RS 62092RS1 62092RSH 6209PP 6209LLU
In stock
Price Break
10+
$22.32
19+
$21.07
29+
$20.82
39+
$20.57
49+
$20.31
74+
$20.06
99+
$18.81
199+
$18.56
249+
$18.31
499+
$18.06
999+
$17.56
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 19mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 21.6 kN |
| Fatigue load limit Pu | 0.915 kN |
| Reference speed | 17000 rpm |
| Limiting speed | 5000 rpm |
| Mass | 0.41 kg |
| d1 | 57.6mm |
| D2 | 75.2mm |
| r1r2 min | 1.1mm |
| da min | 52 |
