SKU: 6209-2Z-EU

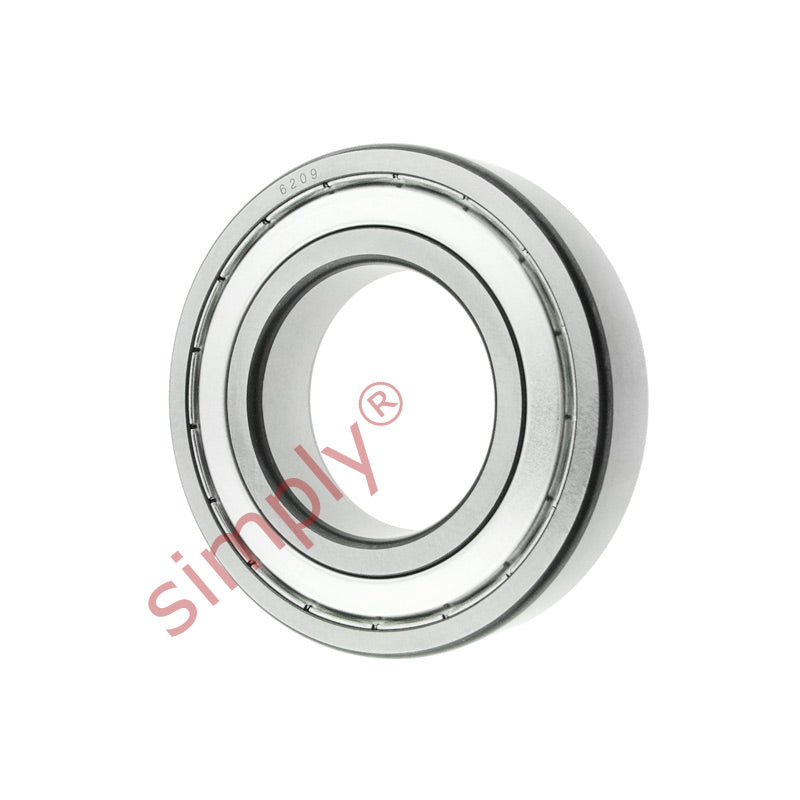

6209ZZ Budget Metal Shielded Deep Groove Ball Bearing 45x85x19mm
Equivalent to: 6209ZZE 6209ZZ 6209.2Z 6209KDD 6209DD 6209FF 62092ZR 6209ZZE 6209ZZ 62092ZR 62092RS2
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 19mm |
| r min | 1.1mm |
| Dynamic load Cr | 32.7 kN |
| Static load Cor | 20.3 kN |
| Speed in grease | 7700 rpm |
| Speed in oil | 9200 rpm |
