SKU: 6209-2Z/VA228-SKF

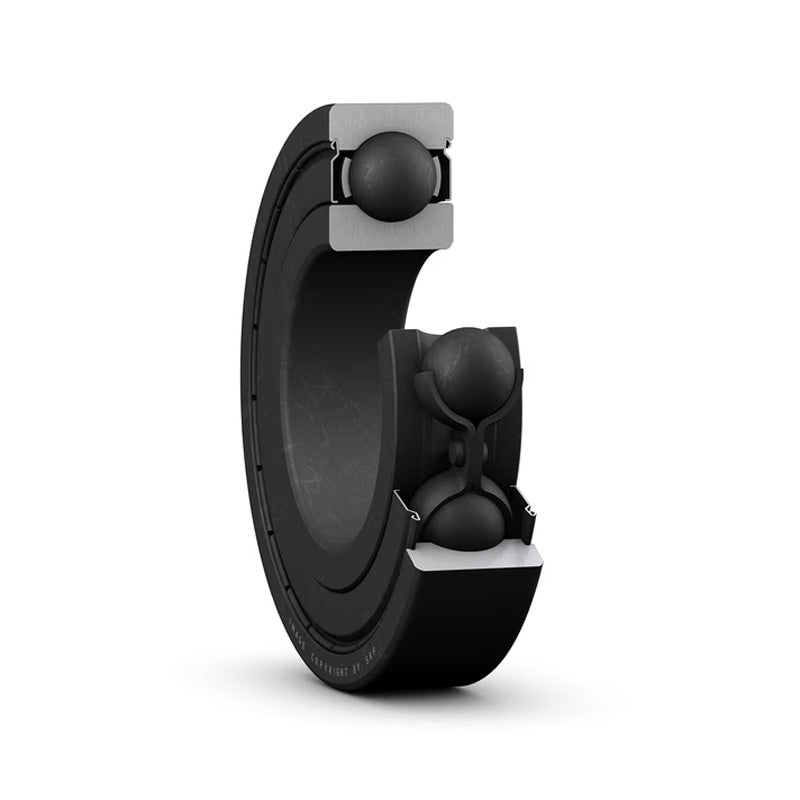

SKF 62092ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 45x85x19mm

Name: SKF 62092ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 45x85x19mm
Brand: SKF
SKU: 6209-2Z/VA228-SKF
Price: 194.91 USD
Availability: InStock

$194.91 ex VAT

Sale Sold out

In stock

Price Break

10+ $130.55

19+ $123.22

29+ $121.75

39+ $120.28

49+ $118.82

74+ $117.35

99+ $110.01

199+ $108.55

249+ $107.08

499+ $105.61

999+ $102.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF VA228 Series High Temperature Bearings: Differing from the 208 series by the addition of a coronet type graphite cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING
Benefits: High temperature resilience, low maintenance

Brand / Quality:: SKF - High Quality
Inside Diameter:: 45mm
Outside Diameter:: 85mm
Width:: 19mm
Seals / Shields:: Metal Shielded
Clearance:: * Standard

Technical

d	45mm
D	85mm
B	19mm
d1	57.6mm
D2	75.2mm
r1r2	1.1mm
Basic load rating Co	21.6 kN
Weight	0.39 kg
Max operating temp	+350 deg C
Min operating temp	-40 deg C
Recommended max speed	100 rpm
