SKU: 6209-NTN

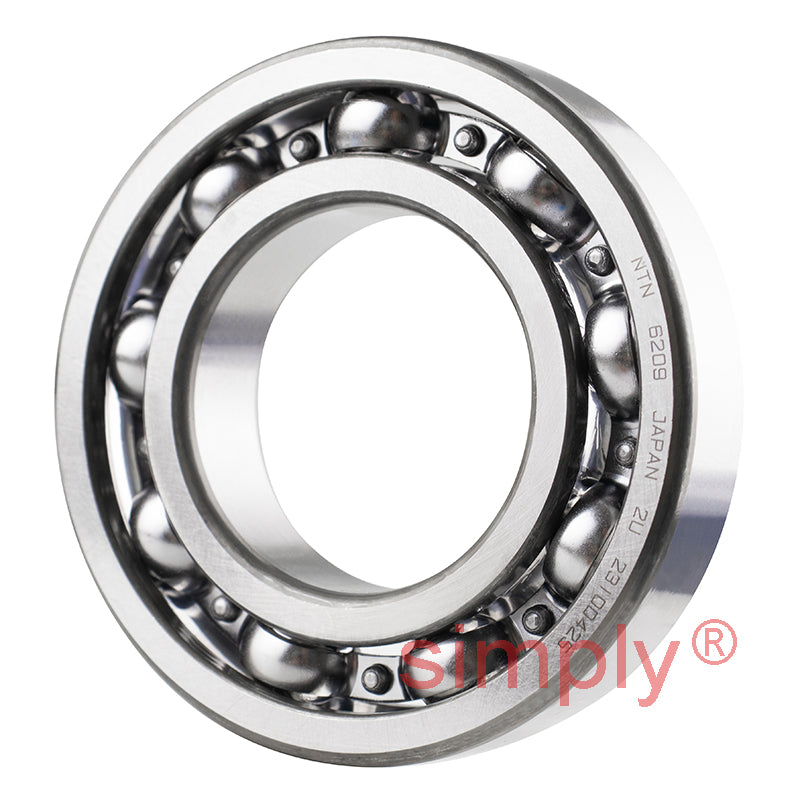

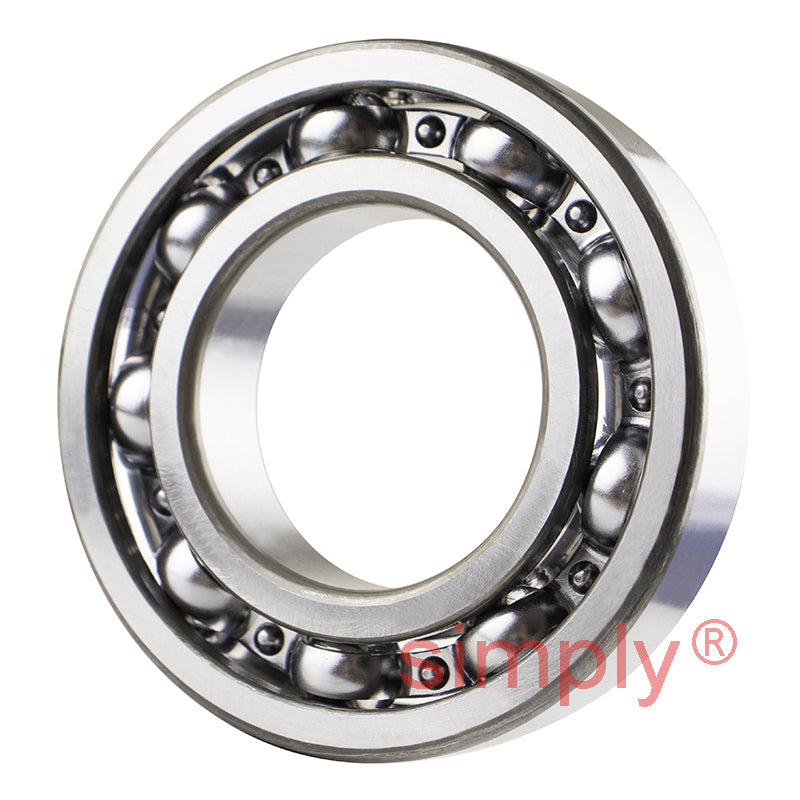

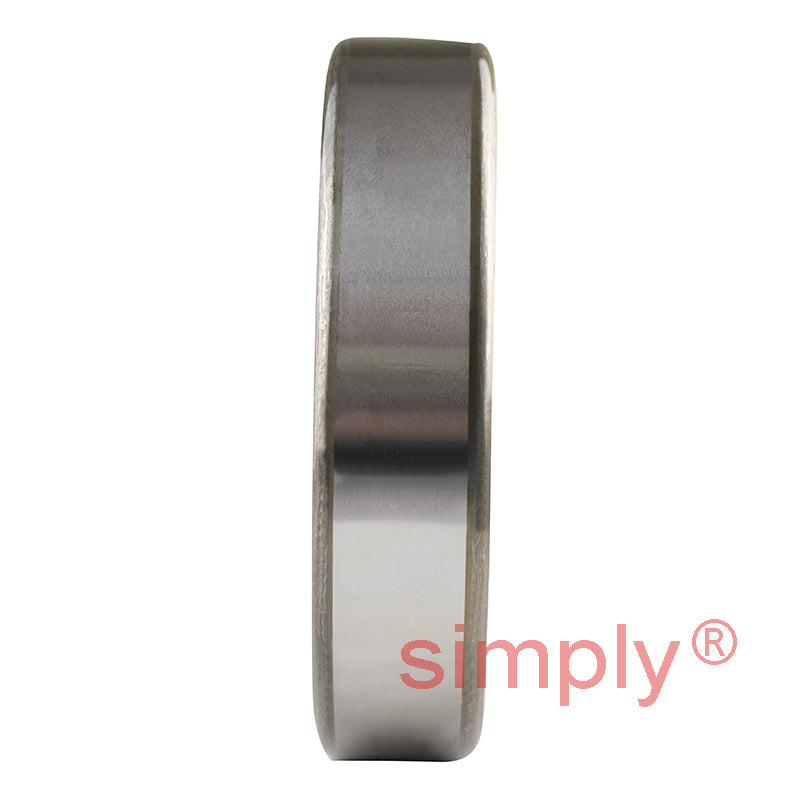

NTN 6209 Open Type Deep Groove Ball Bearing 45x85x19mm

NTN 6209 Open Type Deep Groove Ball Bearing 45x85x19mm
$26.40 ex VAT
$26.40 ex VAT
Sale Sold out

Equivalent to: 6209CM 209K 1209 209S 6209 3209 6A

In stock

Price Break
3+ $17.68
5+ $16.69
10+ $16.49
25+ $16.29
49+ $16.09
74+ $15.90
99+ $14.90
199+ $14.70
249+ $14.51
499+ $14.31
999+ $13.91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Outside Diameter:
85mm
Width:
19mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 45mm
D 85mm
B 19mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
C<sub>r</sub> 36 kN
C<sub>or</sub> 20.4 kN
C<sub>u</sub> 1.6 kN
f<sub>0</sub> 14.1 kN
Grease 7800 rpm
Oil 9200 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 51.5mm
D<sub>a</sub> Max. 78.5mm
r<sub>as</sub> Max. 1mm
Weight 0.398 kg
