SKU: 6209DDUNR-NSK

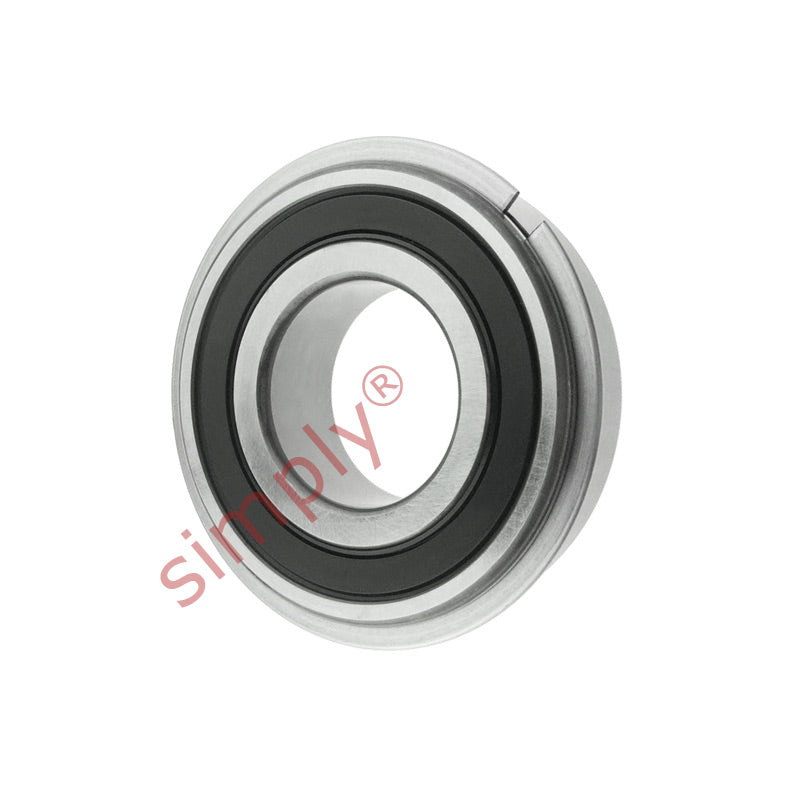

NSK 6209DDUNR Rubber Sealed Deep Groove Ball Bearing With Snap Ring 45x85x19mm

Name: NSK 6209DDUNR Rubber Sealed Deep Groove Ball Bearing With Snap Ring 45x85x19mm
Brand: NSK
SKU: 6209DDUNR-NSK
Price: 82.84 USD
Availability: InStock

$82.84 ex VAT

Sale Sold out

Equivalent to: 6209DUNR

In stock

Price Break

4+ $55.49

10+ $52.38

20+ $51.75

30+ $51.13

50+ $50.51

75+ $49.88

100+ $46.76

200+ $46.14

250+ $45.52

500+ $44.89

1000+ $43.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: NSK - High Quality
Inside Diameter:: 45mm
Outside Diameter:: 85mm
Width:: 19mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard
Snap Ring:: Snap Ring

Technical

d	45mm
D	85mm
B	19mm
r min	1.1mm
Dynamic load Cr	31500 N (3200 kgf)
Static load Cor	20400 N (2080 kgf)
Factor	14.4
Speed in grease	5300 rpm
Speed in oil	9000 rpm
a max	3.28mm
b min	1.9mm
D1 max	81.81mm
ro max	0.6mm
rN min	0.5mm
D2 max	91.6mm
f max	1.7mm
da2 min	51.5mm
da2max	55.5mm
Da2max	78.5mm
ra max	1mm
Dx min	93mm
Cy max	4.6mm
Weight	0.42 kg
