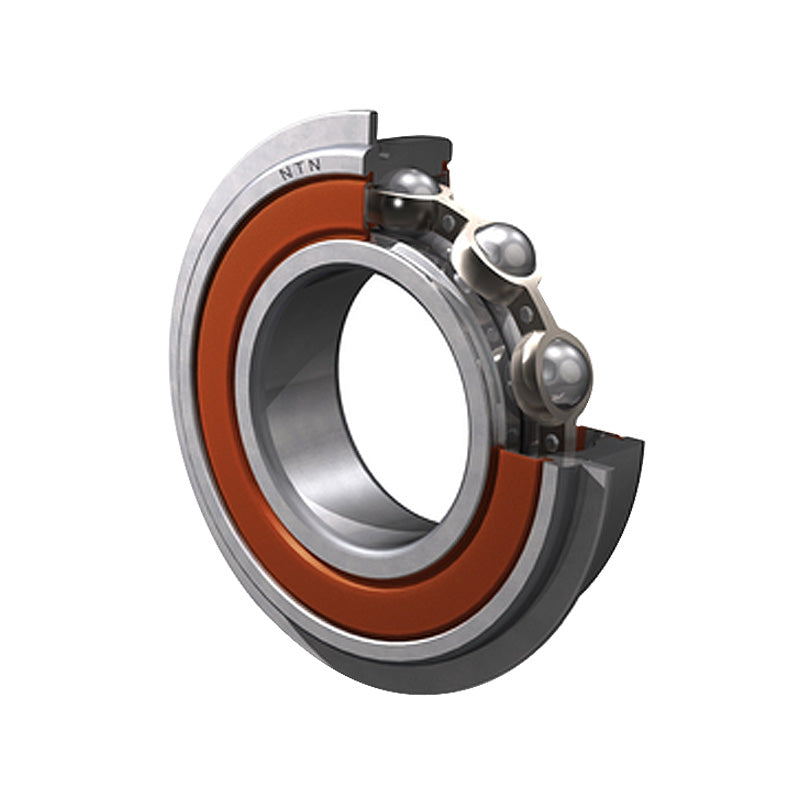

• NTN 6209LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 45x85x19mm
1 1

SKU: 6209LLUNR/2AS-NTN

NTN 6209LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 45x85x19mm

NTN 6209LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 45x85x19mm
$92.68 ex VAT
$92.68 ex VAT
Sale Sold out

Equivalent to: 6209LLUNRCM 6209LLUNR 6209NSENR 6209DUNR 6209RSNR 6209RSHNR 6209PNR 6209RSRNR 6209LUNR 62092NSENR 6209DDUNR 62092RSNR 6209-2RSNR 62092RS1NR 62092RSHNR 6209PPNR 62092RSRNR 6209LLUNR 6209RS2NR 62092RS2NR 62092RSLNR 6209LFSNR 6209EENR Z49509 209SZG

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
MHVCVY8FIO
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Outside Diameter:
85mm
Width:
19mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 45mm
D 85mm
B 19mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 36 kN
C<sub>or</sub> 20.4 kN
C<sub>u</sub> 1.6 kN
f<sub>0</sub> 14.1
--- Fitting Dimensions
Speed 5200rpm
D<sub>1</sub> Max. 81.81mm
a Max. 3.28mm
b Min. 1.9mm
r<sub>o</sub> Max. 0.6mm
