SKU: 6209NR-SKF

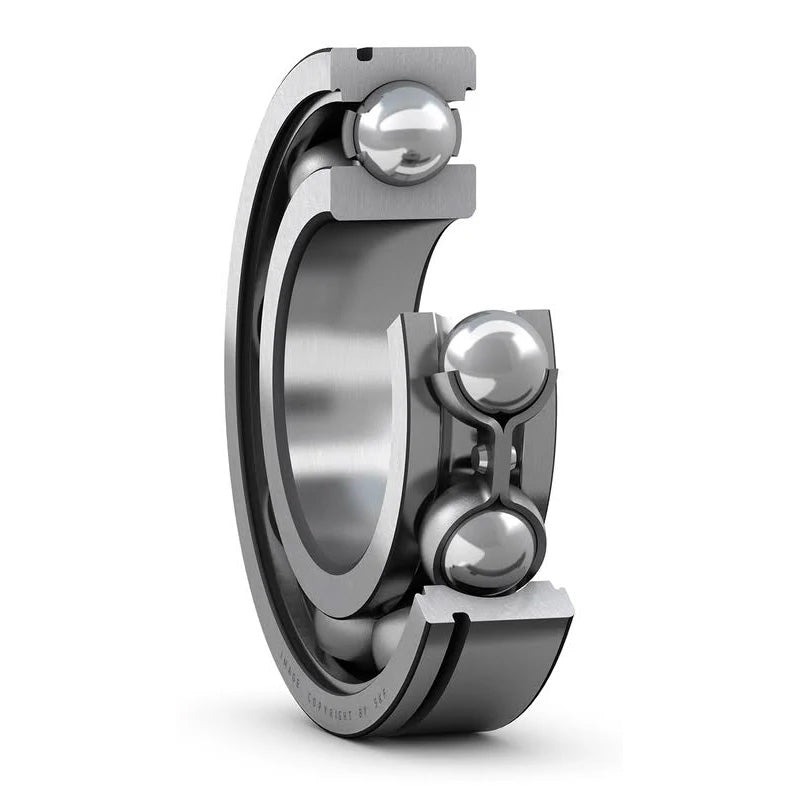

SKF 6209NR Open Type Snap Ring Deep Groove Bearing 45x85x19mm
SKF 6209NR Open Type Snap Ring Deep Groove Bearing 45x85x19mm
Regular price
$65.53
ex VAT
Regular price
Sale price
$65.53
ex VAT
In stock
Price Break
4+
$43.89
10+
$41.43
20+
$40.93
30+
$40.44
50+
$39.95
75+
$39.45
100+
$36.99
200+
$36.49
250+
$36.00
500+
$35.51
1000+
$34.52
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 19mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 21.6 kN |
| Fatigue load limit Pu | 915 kN |
| Reference speed | 17000 rpm |
| Limiting speed | 11000 rpm |
| Weight | 0.41kg |
| Snap ring | SP 85 |
| d1 | 57.6mm |
| D2 | 75.2mm |
| D3 | 81.81mm |
| D4 | 91.6mm |
| b | 1.9mm |
| f | 1.7mm |
| C | 3.28mm |
| r1r2 min | 1.1mm |
| ro max | 0.6mm |
| da min | 52mm |
| Da max | 78mm |
| Db min | 93mm |
| ba min | 2.2mm |
| Ca max | 4.98mm |
| ra max | 1mm |
| Calc Factor kr | 0.025 |
| fo | 14 |
