• NTN 6209ZZNR/5K Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 45x85x19mm
1 1

SKU: 6209ZZNR/5K-NTN

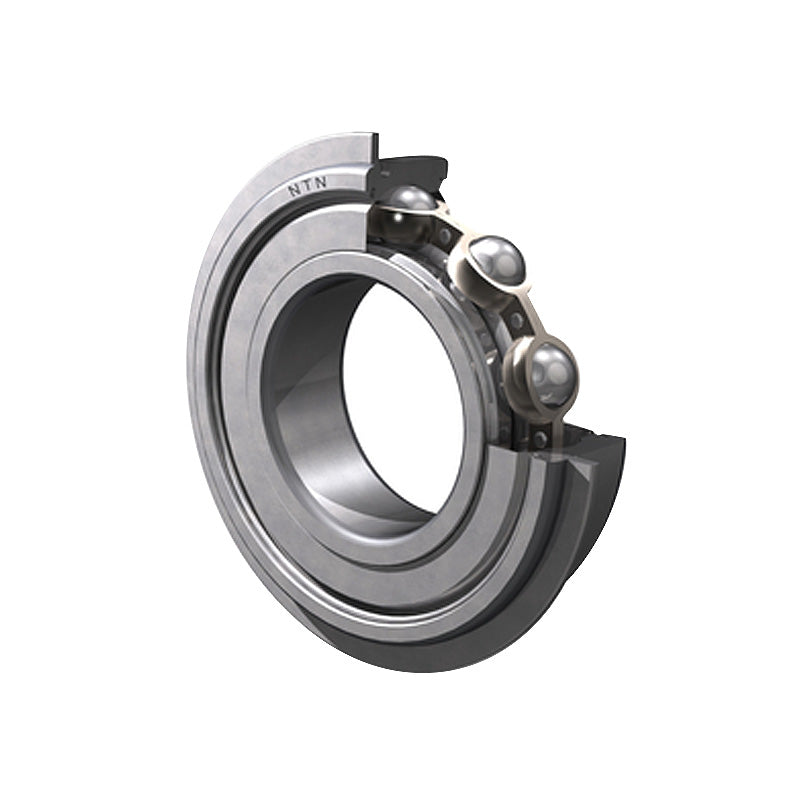

NTN 6209ZZNR/5K Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 45x85x19mm

NTN 6209ZZNR/5K Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 45x85x19mm
$41.77 ex VAT
$41.77 ex VAT
Sale Sold out

Equivalent to: 6209ZZNRCM 6209ZZNR 6209ZZNR 62092ZNR 6209ZZNR 62092ZRNR 6209ZZENR 6209FFNR 6209DDNR 6209DDCNR 6209KDDCNR EL452ZNR EL45ZZNR 9109KDDG 4773L09 109KSFFG

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
HEAD_SKZN
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Outside Diameter:
85mm
Width:
19mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 45mm
D 85mm
B 19mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 36 kN
C<sub>or</sub> 20.4 kN
C<sub>u</sub> 1.6 kN
f<sub>0</sub> 14.1 rpm
Grease 7800 rpm
--- Fitting Dimensions
Oil 9200 rpm
D<sub>1</sub> Max. 81.81mm
a Max. 3.28mm
b Min. 1.9mm
r<sub>o</sub> Max. 0.6mm
