SKU: 6210-ZZE-NACHI

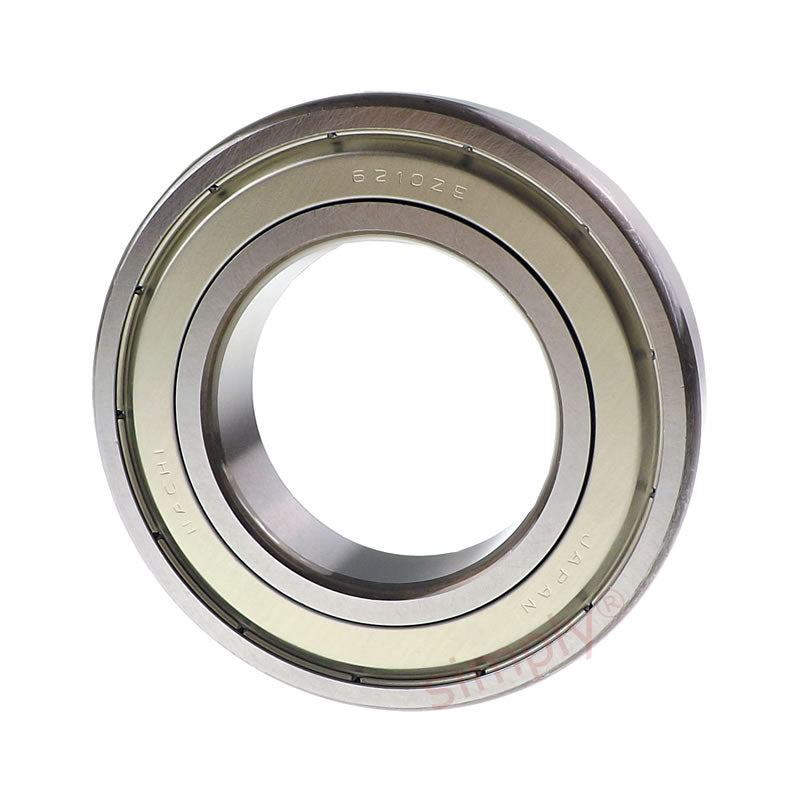

NACHI 6210ZZE Metal Shielded Deep Groove Ball Bearing 50x90x20mm
NACHI 6210ZZE Metal Shielded Deep Groove Ball Bearing 50x90x20mm
Regular price
$31.32
ex VAT
Regular price
Sale price
$31.32
ex VAT
Equivalent to: 6210ZZ 62102Z 6210.2Z 6210KDD 6210DD 62102ZR 6210FF
In stock
Price Break
5+
$20.98
9+
$19.80
19+
$19.57
29+
$19.33
49+
$19.09
74+
$18.86
99+
$17.68
199+
$17.44
249+
$17.21
499+
$16.97
999+
$16.50
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 20mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 50mm |
|---|---|
| Outside Diameter D | 90mm |
| Width B | 20mm |
| Min radius r | 1.1mm |
| Dynamic load | 35000 kN |
| Static load | 23200 kN |
| Max speed | 7100 rpm |
| da min | 57mm |
| Da max | 83mm |
| ra max | 1mm |
| Weight | 0.463 kg |
