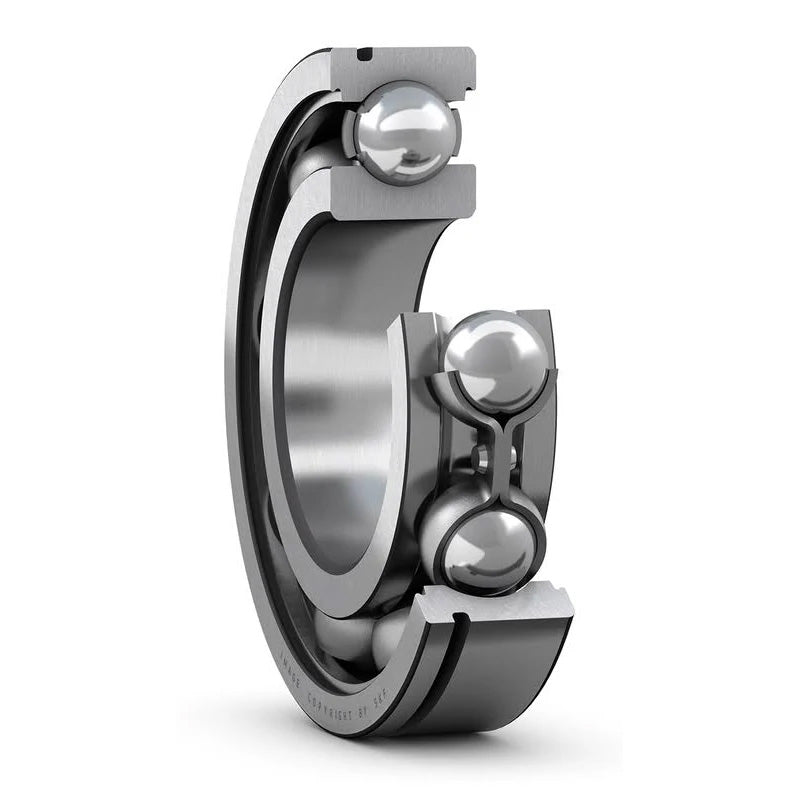

• SKF 6210NRC3 Open Type Snap Ring Deep Groove Bearing 50x90x20mm
1 1

SKU: 6210NR/C3-SKF

SKF 6210NRC3 Open Type Snap Ring Deep Groove Bearing 50x90x20mm

SKF 6210NRC3 Open Type Snap Ring Deep Groove Bearing 50x90x20mm
$87.10 ex VAT
$87.10 ex VAT
Sale Sold out

In stock

Price Break
4+ $58.34
10+ $55.06
20+ $54.41
30+ $53.75
50+ $53.10
75+ $52.44
100+ $49.16
200+ $48.51
250+ $47.85
500+ $47.20
1000+ $45.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Snap ring location in housings, Rubber and Metal Sealed versions available

Brand / Quality:
SKF - High Quality
Inside Diameter:
50mm
Outside Diameter:
90mm
Width:
20mm
Seals / Shields:
None
Clearance:
C3
Snap Ring:
Snap Ring
Technical
d 50mm
D 90mm
B 20mm
Dynamic load C 37.1 kN
Static load Co 23.2 kN
Fatigue load limit Pu 0.98 kN
Reference speed 15000 rpm
Limiting speed 10000 rpm
Weight 0.47kg
Snap ring SP 90
d1 62.5mm
D2 81.7mm
D3 86.79mm
D4 96.5mm
b 2.7mm
f 2.46mm
C 3.28mm
r1r2 min 1.1mm
ro max 0.6mm
da min 57mm
Da max 83mm
Db min 98mm
ba min 3mm
Ca max 5.74mm
ra max 1mm
Calc Factor kr 0.025
fo 14
