• NTN 6210ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 50x90x20mm
1 1

SKU: 6210ZZNR/2AS-NTN

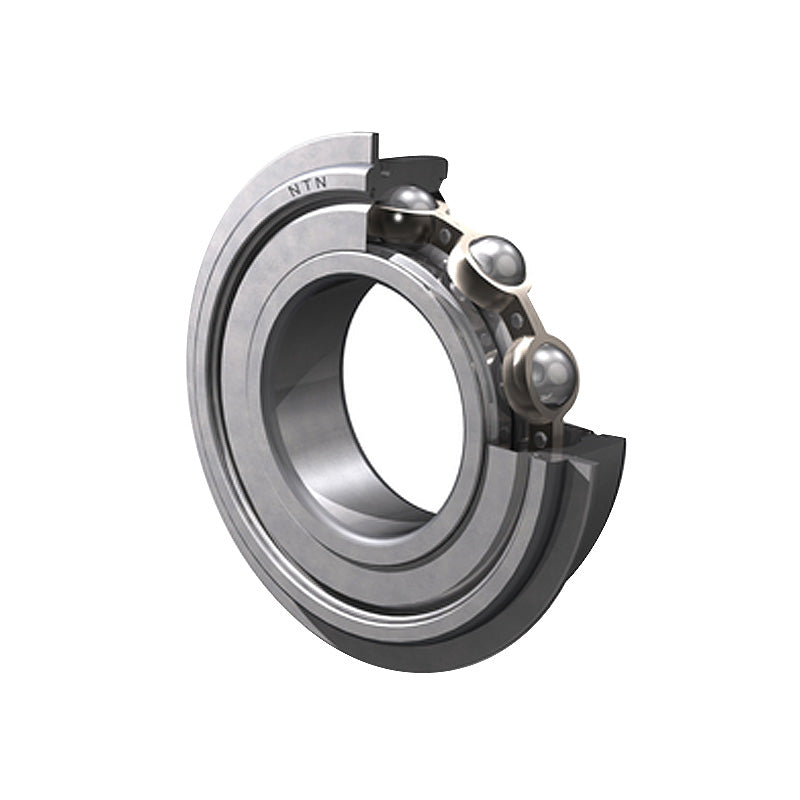

NTN 6210ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 50x90x20mm

NTN 6210ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 50x90x20mm
$74.17 ex VAT
$74.17 ex VAT
Sale Sold out

Equivalent to: 6210ZZNRCM 6210ZZNR 6210ZZNR 62102ZNR 6210ZZNR 62102ZRNR 6210ZZENR 6210FFNR 6210DDNR 6210DDCNR 6210KDDCNR EL502ZNR EL50ZZNR 9110KDDG 4773L10 110KSFFG

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
HEAD_SKZN
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
50mm
Outside Diameter:
90mm
Width:
20mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 50mm
D 90mm
B 20mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 39 kN
C<sub>or</sub> 23.2 kN
C<sub>u</sub> 1.82 kN
f<sub>0</sub> 14.4 rpm
Grease 7100 rpm
--- Fitting Dimensions
Oil 8300 rpm
D<sub>1</sub> Max. 86.79mm
a Max. 3.28mm
b Min. 2.7mm
r<sub>o</sub> Max. 0.6mm
