SKU: 6211-2Z/C4VT127C-SKF

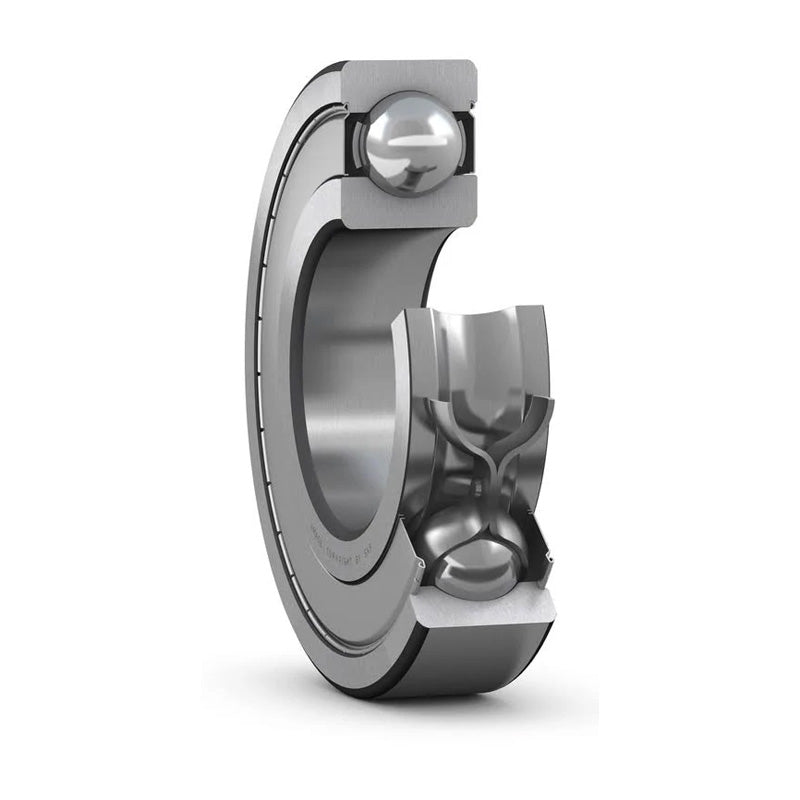

SKF 62112ZC4VT127C Metal Shielded Deep Groove Ball Bearing 55x100x21mm
SKF 62112ZC4VT127C Metal Shielded Deep Groove Ball Bearing 55x100x21mm
Regular price
$470.44
ex VAT
Regular price
Sale price
$470.44
ex VAT
Equivalent to: 6211ZZC4VT127C 62112Z 62112ZRC4VT127C
In stock
Price Break
4+
$315.12
10+
$297.41
20+
$293.87
30+
$290.33
50+
$286.79
75+
$283.25
100+
$265.55
200+
$262.01
250+
$258.47
500+
$254.93
1000+
$247.84
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 21mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C4
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| B | 21mm |
| Dynamic load C | 46.2 kN |
| Static load Co | 29 kN |
| Fatigue load limit Pu | 1.25 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 7000 rpm |
| Weight | 0.61 kg |
| d1 | 69.1mm |
| D2 | 89.4mm |
| r1r2 min | 1.5mm |
| da min | 64mm |
| Da max | 91mm |
| ra max | 1.5mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
