SKU: 6211-NTN

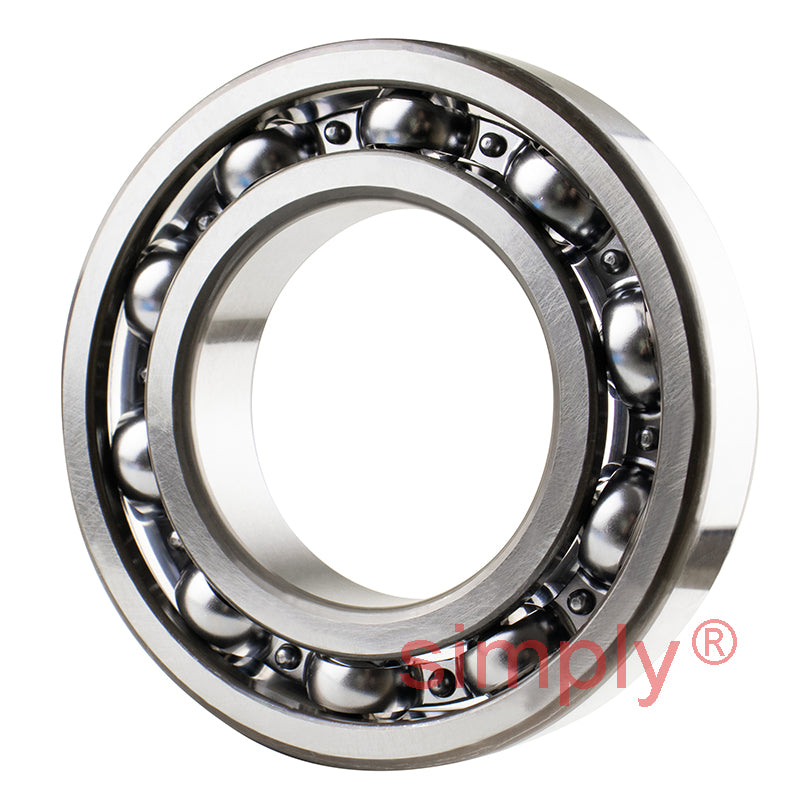

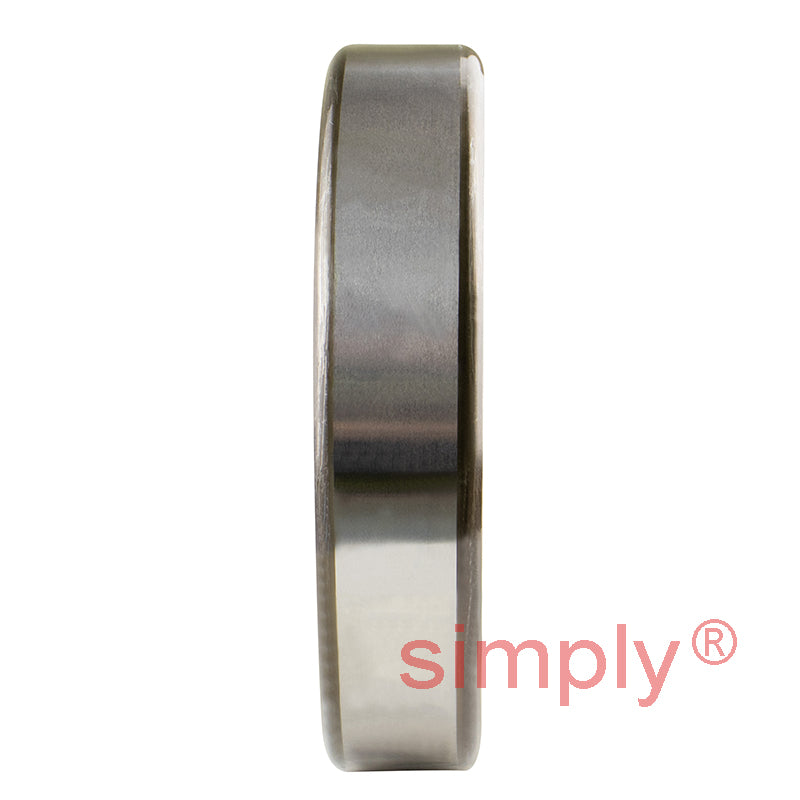

NTN 6211 Open Type Deep Groove Ball Bearing 55x100x21mm

NTN 6211 Open Type Deep Groove Ball Bearing 55x100x21mm
$36.88 ex VAT
$36.88 ex VAT
Sale Sold out

Equivalent to: 6211CM 211K 1211 211S 6211 3211 8A

In stock

Price Break
3+ $24.71
5+ $23.32
10+ $23.04
25+ $22.76
49+ $22.49
74+ $22.21
99+ $20.82
199+ $20.54
249+ $20.26
499+ $19.99
999+ $19.43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
55mm
Outside Diameter:
100mm
Width:
21mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 55mm
D 100mm
B 21mm
r<sub>s</sub> min 1.5mm
--- Loads angles and speeds
C<sub>r</sub> 48 kN
C<sub>or</sub> 29.2 kN
C<sub>u</sub> 2.29 kN
f<sub>0</sub> 14.3 kN
Grease 6400 rpm
Oil 7600 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 63mm
D<sub>a</sub> Max. 92mm
r<sub>as</sub> Max. 1.5mm
Weight 0.601 kg
