SKU: 6211-SKF

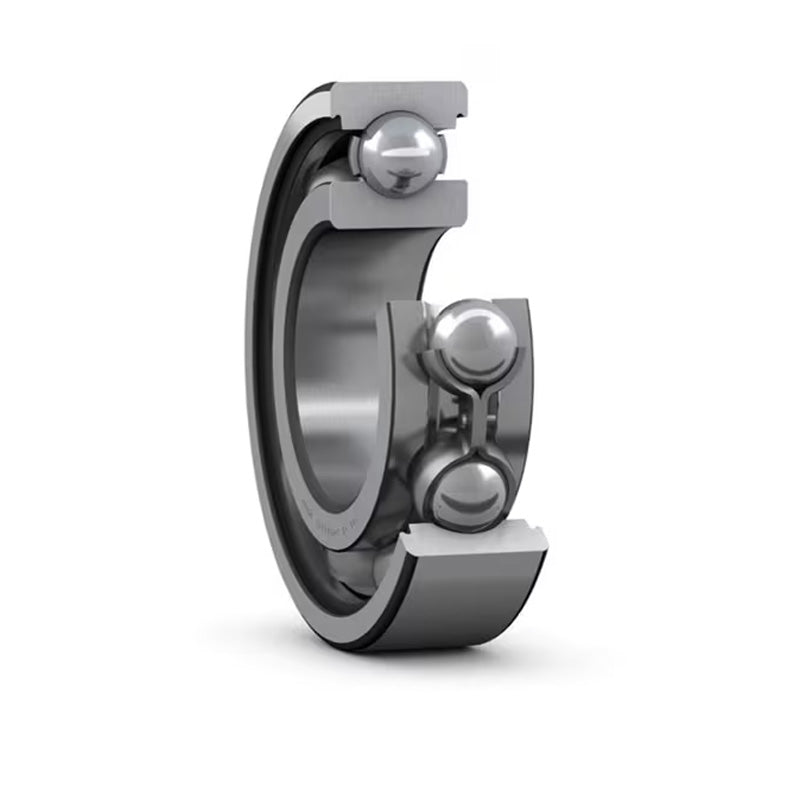

SKF 6211 Open Deep Groove Ball Bearing 55x100x21mm
SKF 6211 Open Deep Groove Ball Bearing 55x100x21mm
Regular price
$39.79
ex VAT
Regular price
Sale price
$39.79
ex VAT
Equivalent to: 211K 1211 211S 6211 3211 8A
In stock
Price Break
4+
$26.65
10+
$25.16
20+
$24.86
30+
$24.56
50+
$24.26
75+
$23.96
100+
$22.46
200+
$22.16
250+
$21.86
500+
$21.56
1000+
$20.96
Quantity
Couldn't load pickup availability
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 21mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| B | 21mm |
| Dynamic load | 46.2 kN |
| Static load | 29 kN |
| Fatigue load limit Pu | 1.25 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 9000 rpm |
| Weight | 0.61 kg |
| d1 | 69.1mm |
| D1 | 85.8mm |
| D2 | 89.4mm |
| r1r2 min | 1.5mm |
| da min | 64mm |
| Da max | 91mm |
| ra max | 1.5mm |
| Calculation factor kr | 0.025 |
| Calculation factor Cor | 14 |
