SKU: 6211-ZZE-NACHI

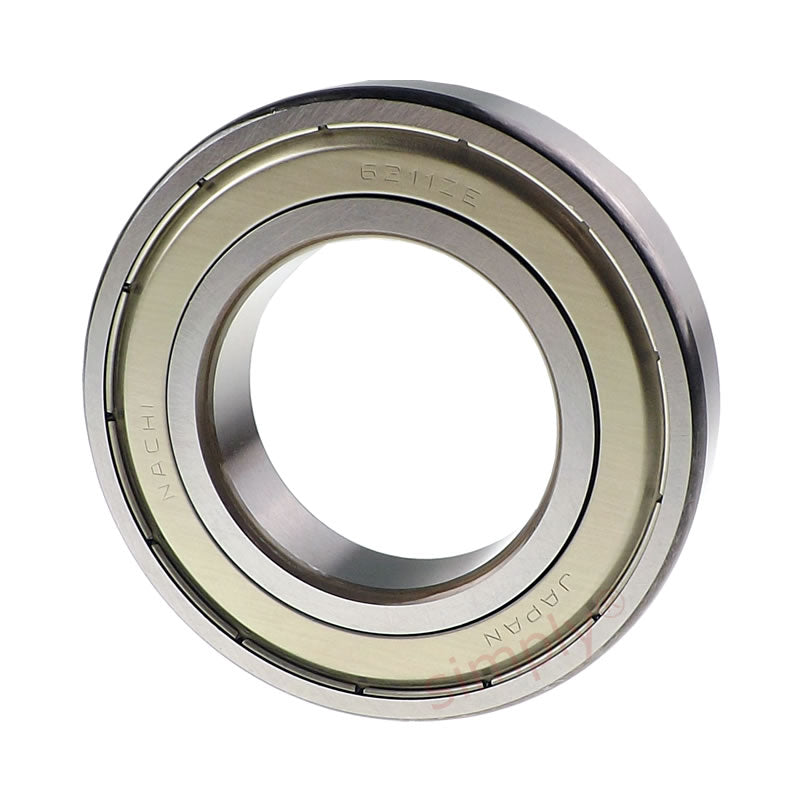

NACHI 6211ZZE Metal Shielded Deep Groove Ball Bearing 55x100x21mm
NACHI 6211ZZE Metal Shielded Deep Groove Ball Bearing 55x100x21mm
Regular price
$37.03
ex VAT
Regular price
Sale price
$37.03
ex VAT
Equivalent to: 6211ZZ 62112Z 6211.2Z 6211KDD 6211DD 62112ZR 6211FF
In stock
Price Break
5+
$24.80
9+
$23.41
19+
$23.13
29+
$22.85
49+
$22.57
74+
$22.30
99+
$20.90
199+
$20.62
249+
$20.35
499+
$20.07
999+
$19.51
Quantity
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 21mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 55mm |
|---|---|
| Outside Diameter D | 100mm |
| Width B | 21mm |
| Min radius r | 1.5mm |
| Dynamic load | 43500 kN |
| Static load | 29300 kN |
| Max speed | 6400 rpm |
| da min | 64mm |
| Da max | 91mm |
| ra max | 1.5mm |
| Weight | 0.607 kg |
