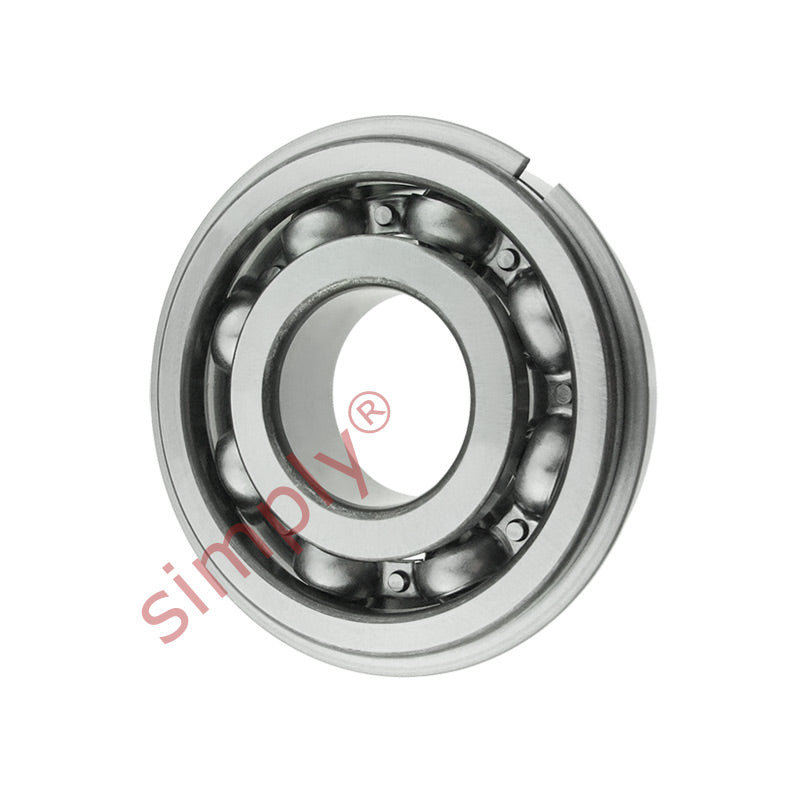

• NSK 6211NR Open Type Deep Groove Ball Bearing With Snap Ring 55x100x21mm
  • NSK
1 2

SKU: 6211NR-NSK

NSK 6211NR Open Type Deep Groove Ball Bearing With Snap Ring 55x100x21mm

NSK 6211NR Open Type Deep Groove Ball Bearing With Snap Ring 55x100x21mm
$73.56 ex VAT
$73.56 ex VAT
Sale Sold out

In stock

Price Break
4+ $49.27
10+ $46.50
20+ $45.95
30+ $45.39
50+ $44.84
75+ $44.28
100+ $41.52
200+ $40.96
250+ $40.41
500+ $39.86
1000+ $38.75

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Snap ring location in housings, Rubber and Metal Sealed versions available

Brand / Quality:
NSK - High Quality
Inside Diameter:
55mm
Outside Diameter:
100mm
Width:
21mm
Seals / Shields:
None
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
d 55mm
D 100mm
B 21mm
r min 1.5mm
Dynamic load Cr 43500 N (4450 kgf)
Static load Cor 29300 N (2980 kgf)
Factor 14.3
Speed in grease 6300 rpm
Speed in oil 7500 rpm
a max 3.28mm
b min 2.7mm
D1 max 96.8mm
ro max 0.6mm
rN min 0.5mm
D2 max 106.5mm
f max 2.46mm
da2 min 63mm
da2max 66.5mm
Da2max 92mm
ra max 1.5mm
Dx min 108mm
Cy max 5.4mm
Weight 0.619 kg
