• NTN 6211ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 55x100x21mm
1 1

SKU: 6211ZZNR/2AS-NTN

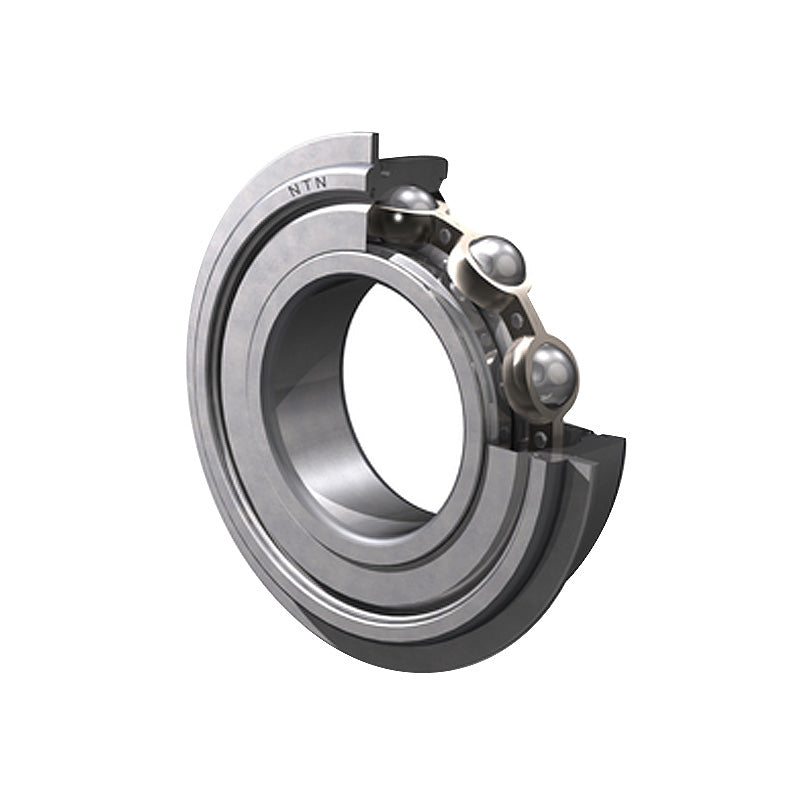

NTN 6211ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 55x100x21mm

NTN 6211ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 55x100x21mm
$52.76 ex VAT
$52.76 ex VAT
Sale Sold out

Equivalent to: 6211ZZNRCM 6211ZZNR 6211ZZNR 62112ZNR 6211ZZNR 62112ZRNR 6211ZZENR 6211FFNR 6211DDNR 6211DDCNR 6211KDDCNR EL552ZNR EL55ZZNR 9111KDDG 4773L11 111KSFFG

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
HEAD_SKZN
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
55mm
Outside Diameter:
100mm
Width:
21mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 55mm
D 100mm
B 21mm
r<sub>s</sub> min 1.5mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 48 kN
C<sub>or</sub> 29.2 kN
C<sub>u</sub> 2.29 kN
f<sub>0</sub> 14.3 rpm
Grease 6400 rpm
--- Fitting Dimensions
Oil 7600 rpm
D<sub>1</sub> Max. 96.8mm
a Max. 3.28mm
b Min. 2.7mm
r<sub>o</sub> Max. 0.6mm
