• NTN 6212LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 60x110x22mm
1 1

SKU: 6212LLUNR/2AS-NTN

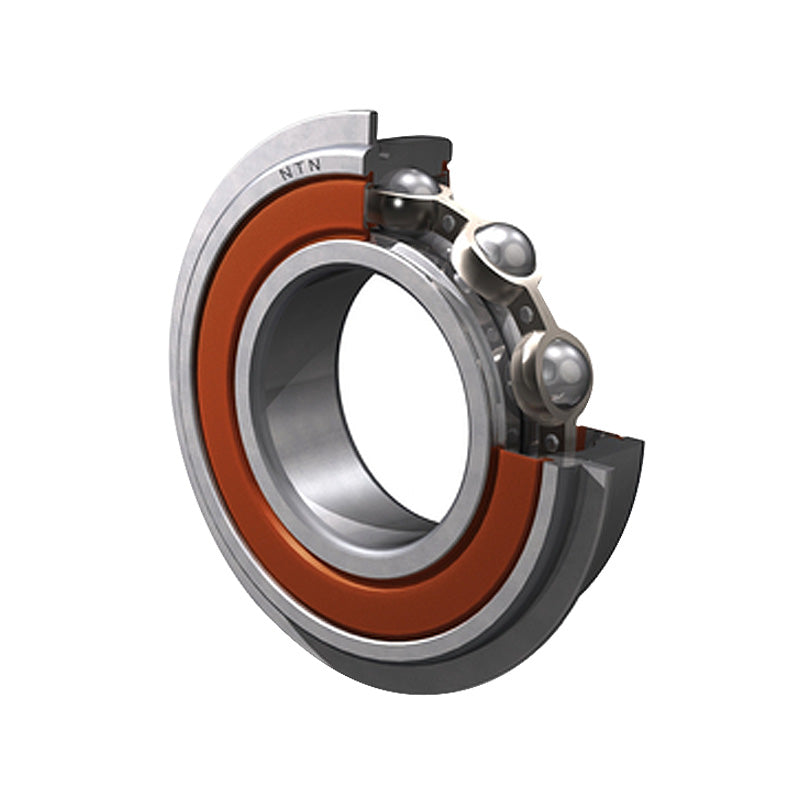

NTN 6212LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 60x110x22mm

NTN 6212LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 60x110x22mm
$226.97 ex VAT
$226.97 ex VAT
Sale Sold out

Equivalent to: 6212LLUNRCM 6212LLUNR 6212NSENR 6212DUNR 6212RSNR 6212RSHNR 6212PNR 6212RSRNR 6212LUNR 62122NSENR 6212DDUNR 62122RSNR 6212-2RSNR 62122RS1NR 62122RSHNR 6212PPNR 62122RSRNR 6212LLUNR 6212RS2NR 62122RS2NR 62122RSLNR 6212LFSNR 6212EENR Z49512 212SZG

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
MHVCVY8FIO
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
60mm
Outside Diameter:
110mm
Width:
22mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 60mm
D 110mm
B 22mm
r<sub>s</sub> min 1.5mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 58 kN
C<sub>or</sub> 36 kN
C<sub>u</sub> 2.83 kN
f<sub>0</sub> 14.3
--- Fitting Dimensions
Speed 3800rpm
D<sub>1</sub> Max. 106.81mm
a Max. 3.28mm
b Min. 2.7mm
r<sub>o</sub> Max. 0.6mm
