SKU: 6212NR/C3-SKF

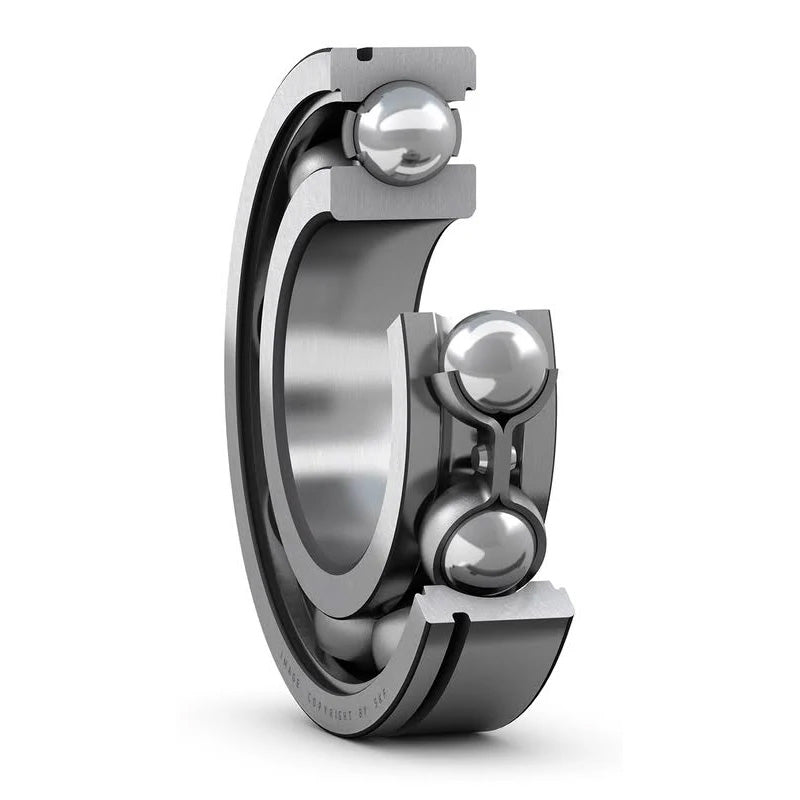

SKF 6212NRC3 Open Type Snap Ring Deep Groove Bearing 60x110x22mm
SKF 6212NRC3 Open Type Snap Ring Deep Groove Bearing 60x110x22mm
Regular price
$123.45
ex VAT
Regular price
Sale price
$123.45
ex VAT
In stock
Price Break
4+
$82.69
10+
$78.05
20+
$77.12
30+
$76.19
50+
$75.26
75+
$74.33
100+
$69.68
200+
$68.75
250+
$67.83
500+
$66.90
1000+
$65.04
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 22mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 22mm |
| Dynamic load C | 55.3 kN |
| Static load Co | 36 kN |
| Fatigue load limit Pu | 1.53 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 8000 rpm |
| Weight | 0.77kg |
| Snap ring | SP 110 |
| d1 | 75.5mm |
| D2 | 98mm |
| D3 | 106.81mm |
| D4 | 116.6mm |
| b | 2.7mm |
| f | 2.46mm |
| C | 3.28mm |
| r1r2 min | 1.5mm |
| ro max | 0.6mm |
| da min | 69mm |
| Da max | 101mm |
| Db min | 118mm |
| ba min | 3mm |
| Ca max | 5.74mm |
| ra max | 1.5mm |
| Calc Factor kr | 0.025 |
| fo | 14 |
