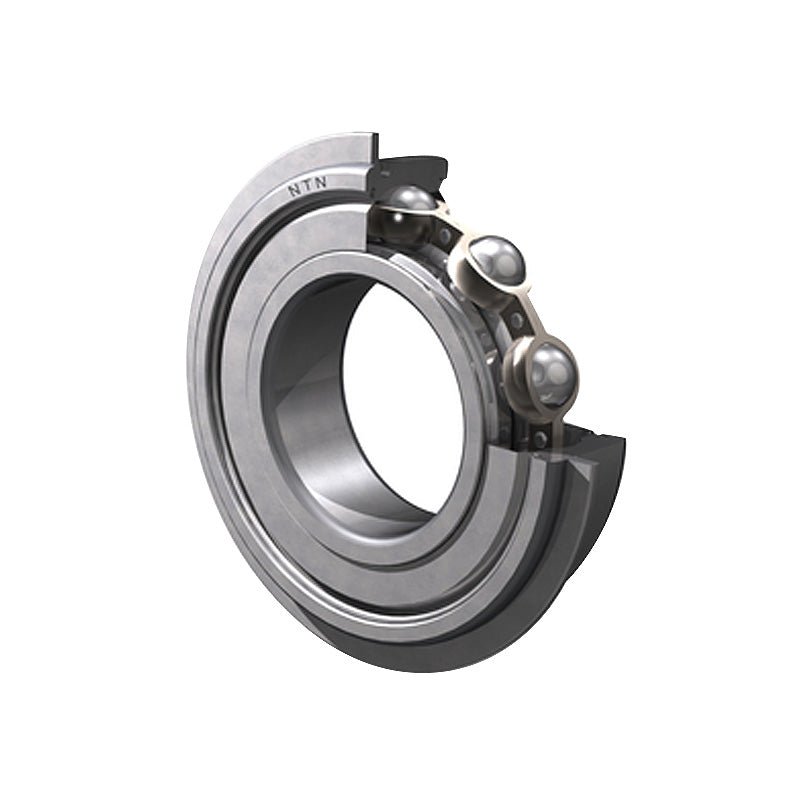

• NTN 6212ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 60x110x22mm
1 1

SKU: 6212ZZNR/2AS-NTN

NTN 6212ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 60x110x22mm

NTN 6212ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 60x110x22mm
$99.43 ex VAT
$99.43 ex VAT
Sale Sold out

Equivalent to: 6212ZZNRCM 6212ZZNR 6212ZZNR 62122ZNR 6212ZZNR 62122ZRNR 6212ZZENR 6212FFNR 6212DDNR 6212DDCNR 6212KDDCNR EL602ZNR EL60ZZNR 9112KDDG 4773L12 112KSFFG

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
HEAD_SKZN
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Brand / Quality:
NTN - High Quality
Inside Diameter:
60mm
Outside Diameter:
110mm
Width:
22mm
Seals / Shields:
Metal Shielded
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 60mm
D 110mm
B 22mm
r<sub>s</sub> min 1.5mm
--- Loads angles and speeds
rNS Min. 0.5 kN
C<sub>r</sub> 58 kN
C<sub>or</sub> 36 kN
C<sub>u</sub> 2.83 kN
f<sub>0</sub> 14.3 rpm
Grease 6000 rpm
--- Fitting Dimensions
Oil 7000 rpm
D<sub>1</sub> Max. 106.81mm
a Max. 3.28mm
b Min. 2.7mm
r<sub>o</sub> Max. 0.6mm
