SKU: 6213/HC5C3-SKF

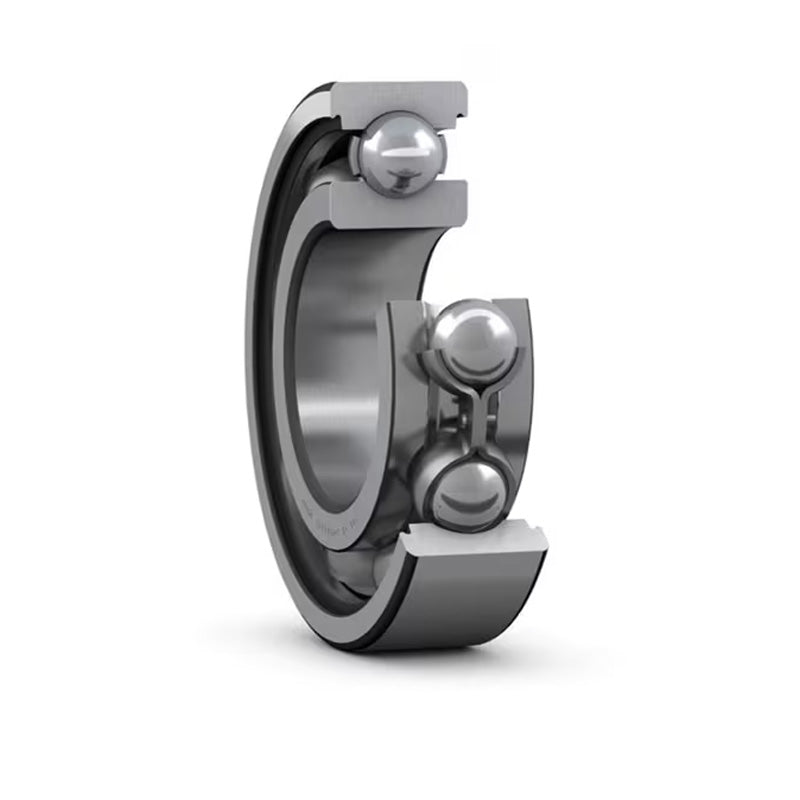

SKF 6213HC5C3 Hybrid Ball Bearing Open Type 65x120x23mm - Allow 2-3 Days

Name: SKF 6213HC5C3 Hybrid Ball Bearing Open Type 65x120x23mm - Allow 2-3 Days
Brand: SKF
SKU: 6213/HC5C3-SKF
Price: 662.49 USD
Availability: InStock

$662.49 ex VAT

Sale Sold out

In stock

Price Break

10+ $493.54

19+ $473.60

29+ $463.63

39+ $448.68

49+ $438.71

74+ $413.78

99+ $348.97

199+ $0.00

249+ $0.00

499+ $0.00

999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Life Hybrid Deep Groove Ball Bearings: Special application bearings, the outer and inner races are made form bearing steel and the rolling elements are made from Silicon Nitride (SiN4) In addition to being excellent electrical insulators hybrid bearings have a higher speed capacity and longer service life that normal steel only bearings.
Benefits: Electrically insulated, sealed for life, high life expectancy.

Brand / Quality:: SKF - High Quality
Inside Diameter:: 65mm
Outside Diameter:: 120mm
Width:: 23mm
Seals / Shields:: None
Clearance:: C5

Technical

d	65mm
D	120mm
B	23mm
Dynamic load Cr	58.5 kN
Static load Cor	40.5 kN
Fatigue load limit	1.73 kN
Reference speed	16000 rpm
Limiting speed	8500 rpm
Weight	0.92 kg
d1	83.3mm
D1	106mm
r1r2 min	1.5mm
da min	74mm
Da max	111mm
ra max	1.5mm
fo	15
