SKU: 6213NR/C3-SKF

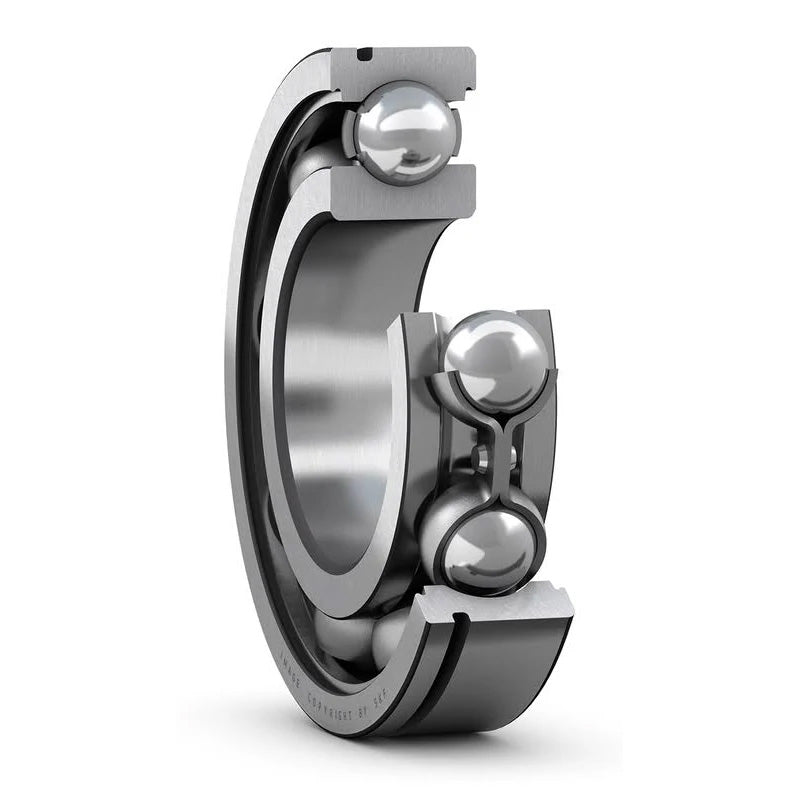

SKF 6213NRC3 Open Type Snap Ring Deep Groove Bearing 65x120x23mm
SKF 6213NRC3 Open Type Snap Ring Deep Groove Bearing 65x120x23mm
Regular price
$181.37
ex VAT
Regular price
Sale price
$181.37
ex VAT
In stock
Price Break
4+
$121.48
10+
$114.66
20+
$113.29
30+
$111.93
50+
$110.56
75+
$109.20
100+
$102.37
200+
$101.01
250+
$99.64
500+
$98.28
1000+
$95.55
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 65mm |
|---|---|
| D | 120mm |
| B | 23mm |
| Dynamic load C | 58.5 kN |
| Static load Co | 40.5 kN |
| Fatigue load limit Pu | 1.73 kN |
| Reference speed | 12000 rpm |
| Limiting speed | 7500 rpm |
| Weight | 1kg |
| Snap ring | SP 120 |
| d1 | 83.3mm |
| D2 | 106mm |
| D3 | 115.21mm |
| D4 | 129.7mm |
| b | 3.1mm |
| f | 2.82mm |
| C | 4.06mm |
| r1r2 min | 1.5mm |
| ro max | 0.6mm |
| da min | 74mm |
| Da max | 111mm |
| Db min | 131mm |
| ba min | 3.5mm |
| Ca max | 6.88mm |
| ra max | 1.5mm |
| Calc Factor kr | 0.025 |
| fo | 15 |
