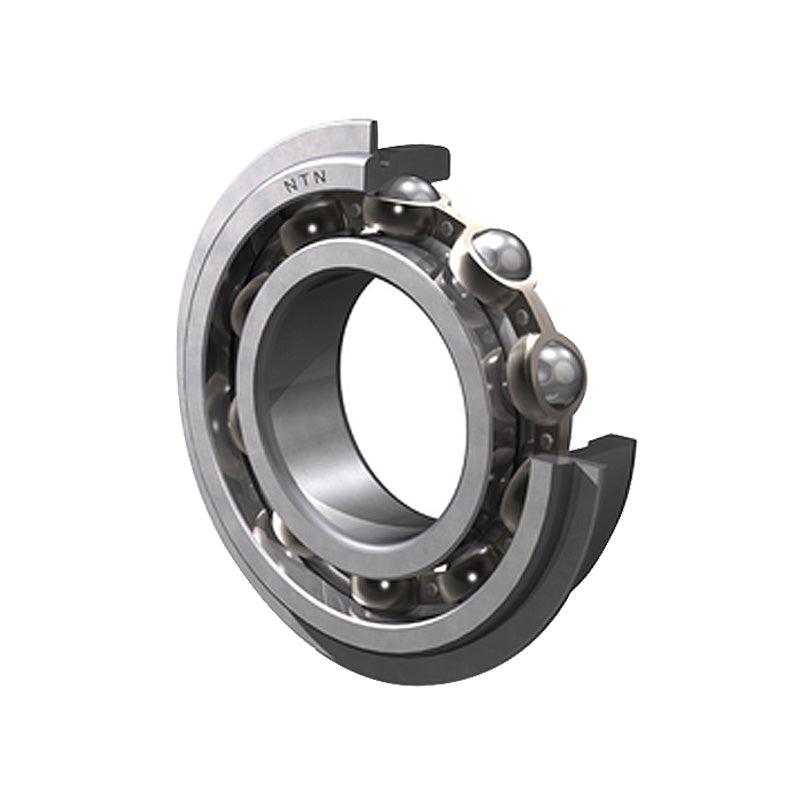

• NTN 6213NR Open Type Deep Groove Ball Bearing with Snap Ring 65x120x23mm
  • NTN
1 2

SKU: 6213NR-NTN

NTN 6213NR Open Type Deep Groove Ball Bearing with Snap Ring 65x120x23mm

NTN 6213NR Open Type Deep Groove Ball Bearing with Snap Ring 65x120x23mm
$146.20 ex VAT
$146.20 ex VAT
Sale Sold out

Equivalent to: 6213NRCM 213KG 213SG 43213

In stock

Price Break
3+ $97.93
5+ $92.43
10+ $91.32
25+ $90.22
49+ $89.12
74+ $88.02
99+ $82.52
199+ $81.42
249+ $80.32
499+ $79.22
999+ $77.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
65mm
Outside Diameter:
120mm
Width:
23mm
Seals / Shields:
None
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 65mm
D 120mm
B 23mm
r<sub>s</sub> min 1.5mm
rNS Min. 0.5mm
--- Loads angles and speeds
C<sub>r</sub> 63.5 kN
C<sub>or</sub> 40 kN
C<sub>u</sub> 3.15 kN
f<sub>0</sub> 14.4 kN
Grease 5500 rpm
Oil 6500 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 115.21mm
a Max. 4.06mm
b Min. 3.1mm
r<sub>o</sub> Max. 0.6mm
D<sub>2</sub> Max. 129.7mm
f Max. 2.82mm
--- Fitting Dimensions
d<sub>a</sub> Min. 73mm
d<sub>a</sub> Max. 80.5mm
D<sub>a</sub> Max. 112mm
D<sub>X</sub> (approx) 131.5mm
C<sub>Y</sub> Max. 6.5mm
C<sub>Z</sub> Min. 2.9mm
r<sub>as</sub> Max. 1.5mm
r<sub>Nas</sub> Max. 0.5mm
Weight 0.99 kg
