SKU: 6214-2Z-HT-330

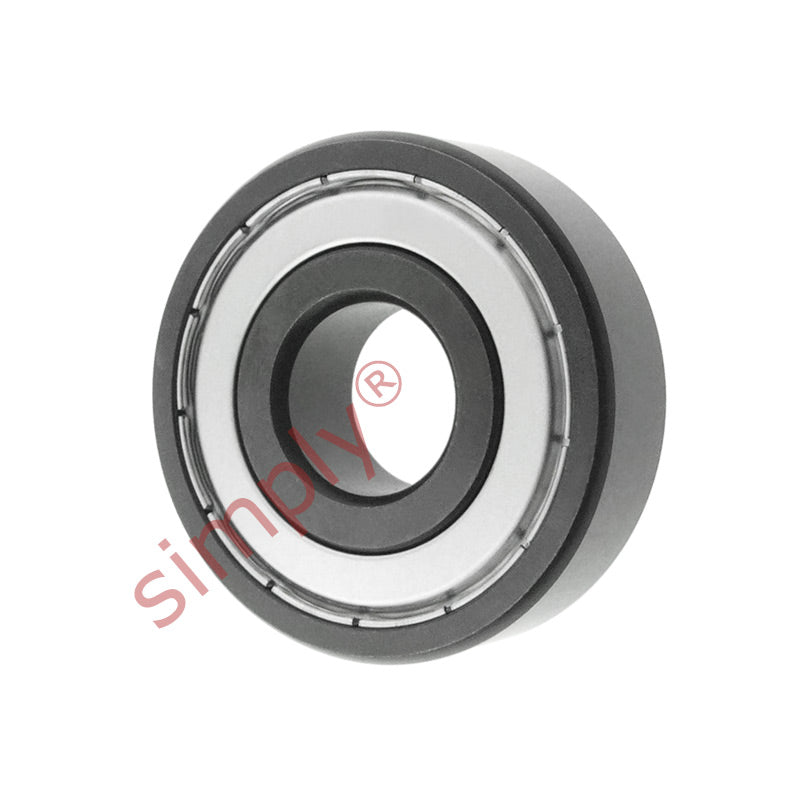

6214ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 70x125x24mm Max 55rpm
- Regular price
- $62.22 ex VAT
- Sale price
- $62.22
- Regular price
-
In stock
Quantity Price Breaks
3
$55.38
5
$52.26
10
$51.64
15
$51.02
20
$50.40
30
$49.78
40
$46.67
50
$46.04
60
$45.42
75
$44.80
100
$43.55
SKU:
6214-2Z-HT-330
6214ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 70x125x24mm Max 55rpm
- Regular price
- $62.22 ex VAT
- Sale price
- $62.22
- Regular price
-
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Technical
| Inside diameter d | = | 70mm |
| Outside diameter D | = | 125mm |
| Width W | = | 24mm |
| Static load max | = | 25.43 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 55 rpm |
| Weight | = | 1040 g |
