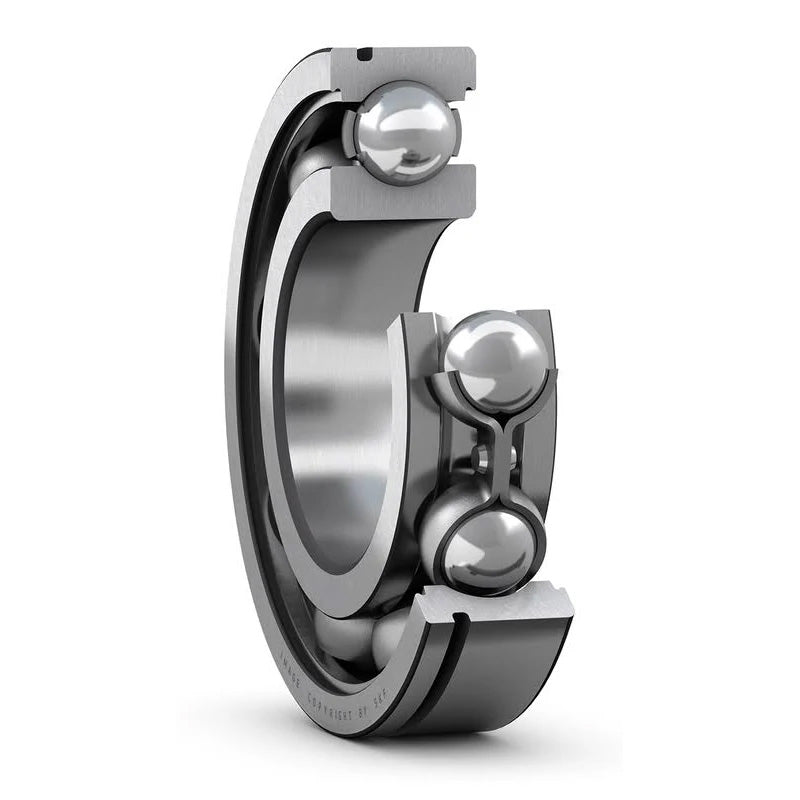

SKF 6214NR Open Type Snap Ring Deep Groove Bearing 70x125x24mm
SKF 6214NR Open Type Snap Ring Deep Groove Bearing 70x125x24mm
Regular price
$226.10
ex VAT
Regular price
Sale price
$226.10
ex VAT
In stock
Price Break
4+
$151.45
10+
$142.94
20+
$141.24
30+
$139.54
50+
$137.84
75+
$136.14
100+
$127.63
200+
$125.93
250+
$124.23
500+
$122.52
1000+
$119.12
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 125mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 70mm |
|---|---|
| D | 125mm |
| B | 24mm |
| Dynamic load C | 63.7 kN |
| Static load Co | 45 kN |
| Fatigue load limit Pu | 1.9 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 7000 rpm |
| Weight | 1.05kg |
| Snap ring | SP 125 |
| d1 | 87mm |
| D2 | 111mm |
| D3 | 120.22mm |
| D4 | 134.7mm |
| b | 3.1mm |
| f | 2.82mm |
| C | 4.06mm |
| r1r2 min | 1.5mm |
| ro max | 0.6mm |
| da min | 79mm |
| Da max | 116mm |
| Db min | 136mm |
| ba min | 3.5mm |
| Ca max | 6.88mm |
| ra max | 1.5mm |
| Calc Factor kr | 0.025 |
| fo | 15 |
